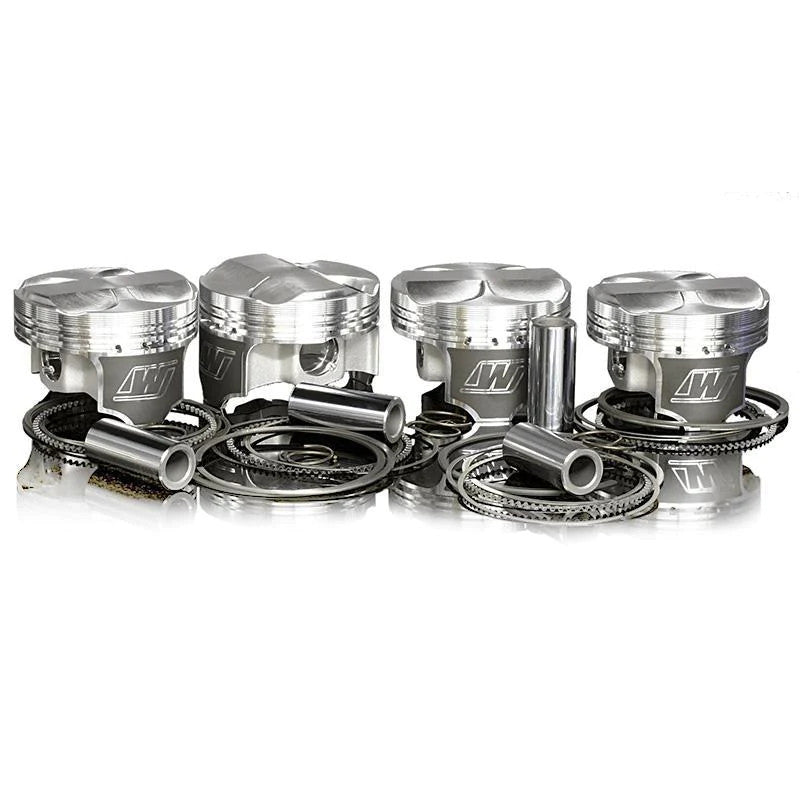

WISECO FORGED PISTON SET - HONDA L-SERIES MOTORS

Fits:

• 2011 - 2016 Honda CR-Z (ZF1/ZF2)
• 2011 - 2016 Honda Fit (GK5)
• 2009 - 2013 Honda Fit (GE8)
• 1st Gen Honda Fit (Gd3)

Wiseco Sport Compact pistons are made from dedicated forgings produced in-house to provide a light weight piston with superior strength and optimal design. As the multivalve piston technology leader, the line features specially designed valve pockets, complex dome and crown shapes, the steel nitride/napier xx rings and optimized skirt profiles. The pistons come standard with Wiseco ArmorGlide coating material for reduced friction and noise, freeing up horsepower.

These Wiseco Forged Pistons have a 10:1 compression ratio making it an ideal solution for forced induction applications looking to run specifications close to the OEM pistons.

The Honda CR-Z and GD3/GE8 Fits all have a 10.4:1 compression ratio while the GK5 Fit has a 11.5:1 compression ratio.

FEATURES

• Made from 2618 Aluminum Alloy for superior weight to strength ratio
• Strutted Forging for improved strength
• Armor Glide skirt coating reduces friction for more power and less piston rock
• Include rings and pins for easy install
• Forged in-house to eliminate defects
• Made in the USA

EXTENDED INFORMATION

• Type: Forged Pistons
• Material: 2618 Aluminum Alloy
• Compression Ratio: 10:1
• Average Weight: 203 [grams]
• Bore: 73 [mm] / 2.874 [inches]
• Size: Standard
• Stroke: 89.4 [mm] / 3.52 [inches]
• Rod: 149 [mm] / 5.866[inches]
• Compression Height: 26.16 [mm] / 1.030 [inches]
• Head cc's: 26
• Volume: -11.5 cc
• Gasket Thickness: .76 [mm] / 0.03 [inches]
• Deck Clearance: .13 [mm] / .005 [inches]
• Block Heigh: 220 [mm] / 8.661 [inches]
• Pins: 18 [mm]
• Engine Code: L-Series / LEA / L15
• Chassis Code: ZF1 / ZF2 / GK5 / GE8 / GD3
• Notes: Pins and Rings Included
