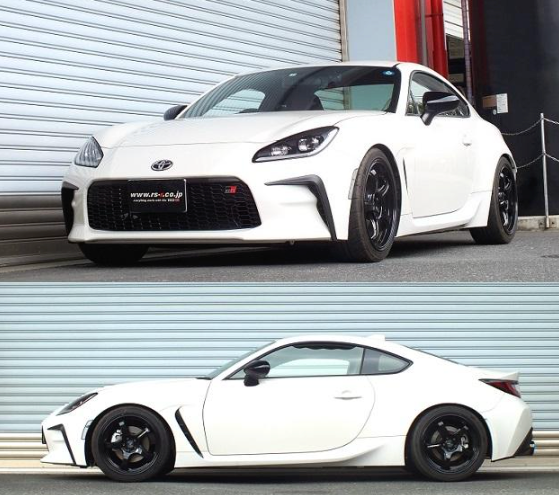

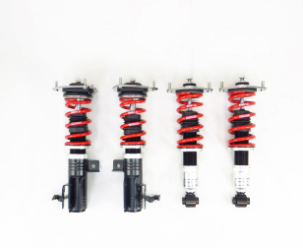

RS-R SPORTS-I COILOVER: GR86/BRZ 2022

Part#: XBIT067M
Compatibility: 2022+ Toyota GR86
Chassis code: ZN8

Recommended Height From RS-R
Front -15mm to -20mm (-0.6in to -0.8in)
Rear -25mm to -30mm (-1.0in to -1.2in)

Maximum Adjustment Ranges
Front +20mm to -30mm (+0.8in to -1.2in)
Rear +30mm to -80mm (+1.2in to -3.2in)

Recommended Adjustments for Optimal Ride-ability
Front +10mm to -30mm (+0.4in to -1.2in)
Rear 0mm to -45mm (0in to -1.8in)

Spring Rates:
Front 6.00kg/mm
Rear 7.00kg/mm
