RPG Off-Road 2017-2023 Ford Raptor Lower Control Arms

RBPAXXX

$2,195.00
$2,195.00
Shipping calculated at checkout.

I have read Axion's store policies on returns, refunds, and cancellations. I also understand that when marked on the product page, special order items may not be canceled for any reason.

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

FITS: 2017-2023 Ford Raptor

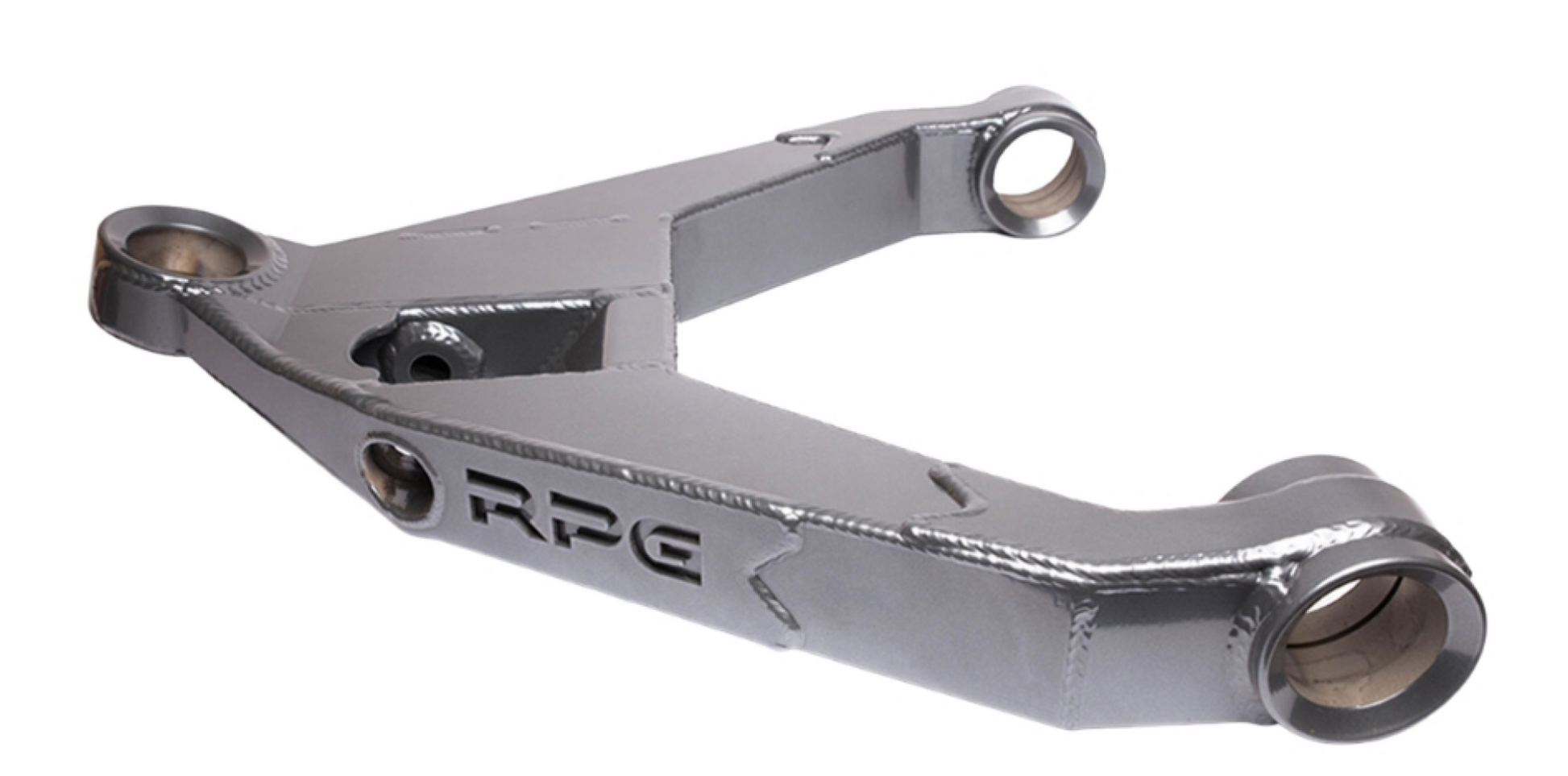

RPG Off-Road ’17-23 Ford Raptor Lower Control Arm Kit

  • The Most Tested, Best Engineered and Most Versatile Arm Available
  • Option to add Secondary Shock Mount for 3.0 Bypass
  • Chromoly Steel
  • FK 1.5″ Uniball Bearings
  • Required Factory Race Series or Aftermarket 3.0 Coilover

Kit includes bearings and all hardware necessary for installation. Shipped with bearings pre-pressed for a bolt-in installation.

RPG Off-Road has set out to develop a lower control arm for the Raptor that would not only enhance the drive of the vehicle,  but also offer for more versatility to the front end of your Raptor.  The RPG Lower Control Arms features a race-car inspired box construction with all three pivot locations attached via a robust 1.5″ FK spherical bearing that is welded on both the inside and out, totaling over 1 foot of weld on each bearing cup for added strength and security and continued this welding approach to the vast majority of the inside construction.  The arm itself has been tested for years now producing incredible results.  It was developed around a Fox Factory Race Series 3.0 or King OEM Performance Series 3.0, and can be optioned with a Dual Shock Mount to run a Fox or King 3.0 External Bypass shock.

During past years of testing they have learned a great deal about the geometry that was needed for optimum ride performance plus small, but necessary things like incorporating factory like steering stops into the arm to limit the wear and tear on the factory steering box and outboard CV’s. The RPG Off-Road 17-23 Ford Raptor Lower Control Arm Kit will bolt right up on the chassis side of things using upgraded Grade 8 hardware, plus custom machined center-pins tapered to fit the factory knuckle all the while wrapped in a beautiful titanium powder coat to last for the long haul. However, the best and most versatile part of the arm is found sitting on the back side. When bolting up RPG Off-Road Lower Control Arms, you will be able to run a Fox or King 3.0 External Bypass shock. The control is amazing and the damping power is light years beyond any single 3.0″ setup that will ultimately take you into terrain that was otherwise unthinkable. With their new Lower Control Arm and Dual shock setup, jumps that used to leave you cringing, are now nothing more than mellow launching pads keeping you yurning for more. And just like every other part they produce, you will receive the piece of mind knowing that you will be bolting on an arm that has been tested harder than any other arm available now, plus the added security of knowing its backed by our lifetime warranty against manufacturing defects.

The Highlights:

  • Dual Fox or King 3.0″ Shock Capable.
  • Built In Steering Stops To Make Sure Your Outboard CV Doesn’t Over Extend on Droop or Bump Travel Just As The Factory Arm
  • Box Construction For Added Strength
  • 1.5″ FK Spherical Bearings Welded Both Inside and Out Totaling Over 1 Foot of Weld Per Bearing Cup!
  • Custom Machined Center Pins Tapered to Fit The Factory Knuckle.
  • Direct Bolt-On With In-House CNC Machined Misalignments
  • Grade 8 Chassis Side Mounting Bolts That Are Both Longer and Stronger to Prevent Bending and the Nut from Backing Off
  • Internally Plated and Welded
  • Fabricated in the USA; fits all generation Raptors
  • FOX Factory Race Series 3.0 Coilovers or any other OEM Replacement Coilover REQUIRED, OEM coilover will not work.
  • Dual Shock Mount option will require an aftermarket wheel with a minimum of 0mm offset. (17×8.5 or 17×9 with 4.75″ or 5″ of backspacing recommended).
