Radium Catch Can Kit (CCV)

rad20-0825-FL

$256.45
$256.45 $269.95
Shipping calculated at checkout.

I have read Axion's store policies on returns, refunds, and cancellations. I also understand that when marked on the product page, special order items may not be canceled for any reason.

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Up to 5% off

FITS:

  • 10th Gen Honda Civic Type-R FK8
  • 11th Gen Honda Civic Type-R
  • 5th Gen Acura Integra Type-S

The Radium Engineering catch cans are the most functional and integrated kits on the market. The catch cans mount using factory holes and integrate perfectly with the surrounding components. These two oil catch cans (PCV side and CCV side) function completely independent of each other and are sold individually or together. They do NOT vent to atmosphere (VTA), thus are emissions and track legal.

Closed loop systems remove the oil and sludge from the PCV gasses before it they are routed to the engine to be burned. A closed loop system also promotes negative crankcase pressure for optimal performance. Furthermore, closed systems prevent unwanted oil vapors from entering the cabin.

This catch can runs inline with the crankcase vent port. At low loads, it experiences atmospheric pressure, but when the engine is at high load (WOT), this line will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation in the air filter intake pipe. Oil accumulation will occur in the intercooler, which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance. The crankcase vent lines are routed over the engine and billet, clamped to the turbo inlet pipe, using temperature-resistant metal tubes.

The dipsticks built into the catch cans allow easy inspection of accumulated fluid.

No cutting, drilling or permanent modification to the vehicle is required.

INSTALLATION NOTES: The 20-0425 Catch Can Kit, CCV, Civic Type-R secures to the RH motor mount and the entire kit fits under the OEM engine cover with no modifications required.

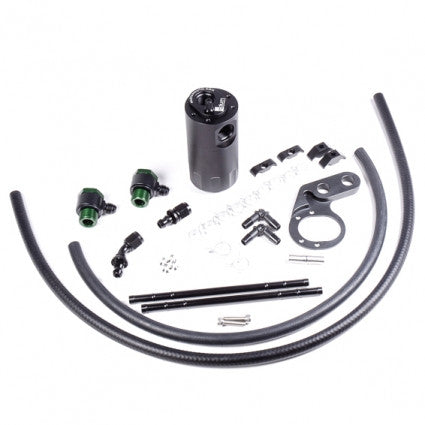

Each kit features the following:

  • Anodized oil catch can with integrated condenser and dipstick
  • Anodized aluminum Honda FK8 specific mounting bracket
  • AN adapter fittings and hose ends
  • Enough PCV hose for custom applications
  • Stainless steel mounting hardware

OPTIONAL:

  • Petcock Drain Kit (4AN ORB) to barb fitting
  • Nylon 1/4" barb ball valve
  • PCV Compliant Rubber Hose

This kit can be used to remotely drain the catch cans without the need to unscrew the canister body.
