PRL Motorsports Carbon Fiber Inlet Pipe Kit – 2016–2021 Honda Civic 1.5T (10th Gen)

FITS:

• 10th Gen Honda Civic
• 10th Gen Honda Civic Si

Designed for drivers who demand efficiency, precision, and performance, PRL Motorsports' Carbon Fiber Turbocharger Inlet Pipe Kit is the ultimate upgrade for your L15B7-powered Civic. This high-flow kit reduces airflow restriction before the turbocharger and helps your turbo operate more efficiently without needing a tune.

This system was engineered to work with the factory turbo, not around it. The combination of cast and carbon construction prevents heat soak while increasing efficiency. Users can expect improved throttle response and better overall turbo performance across the RPM range, all without throwing off MAF readings or requiring tuning.

By combining a thin-wall carbon fiber crossover pipe with a cast aluminum inlet transition, this system maintains optimal velocity while significantly increasing volume. It’s the perfect balance between airflow and control, tailored specifically to Honda’s 1.5L displacement.

Key Features:

• Increases airflow volume while maintaining air velocity
• Reduces pre-turbo restriction to allow more efficient turbocharger operation
• Cast aluminum inlet piece matches the OEM gasket (50mm ID) and transitions smoothly to 76.2mm OD (74mm ID) carbon tubing
• Inlet outlet diameter increased from stock 38mm to 45mm
• Multi-piece design for improved fitment and easier installation
• NO ECU calibration required
• Compatible only with PRL Cobra CAI or Short Ram Intake systems

Construction and Materials:

• Cast 6061 Aluminum Inlet Piece
• Thin-Wall Carbon Fiber Tubing
• (2) High-Temp 4-Ply Silicone Couplers
• 304 Stainless Steel Interlocking Worm Clamps
• Injection Molded Evap Purge Fitting
• Buna O-Rings and Supporting Hardware

Fitment:

• 2016–2021 Honda Civic 1.5T (All trims including Si, 6MT, CVT, RHD, International)
• 2017–2022 Honda CR-V 1.5T (With OEM Civic Inlet Bracket PN: 17288-5K8-000)
• Fits all factory-fitment turbochargers
• ONLY compatible with PRL Cobra Cold Air Intake or PRL Short Ram Intake
• DOES NOT fit the OEM airbox

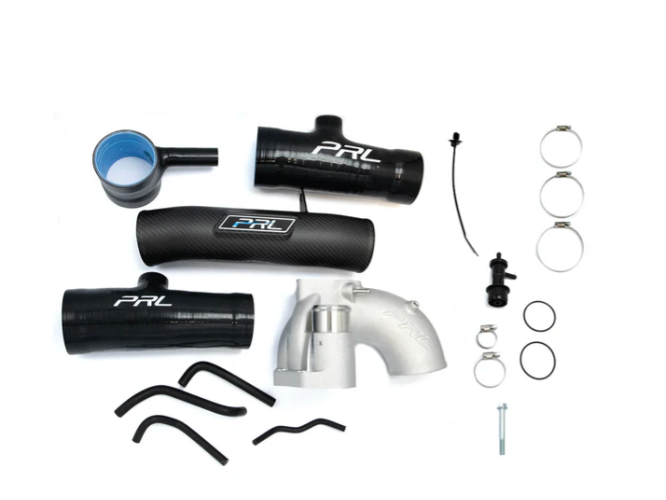

What’s Included:

• (1) Cast Aluminum Inlet Piece
• (1) 76mm OD Carbon Fiber Crossover Tube
• (2) 4-Ply Silicone Couplers
• (5) Stainless Interlocking Worm Clamps
• (4) Vacuum Hoses
• (1) Injection Molded EVAP Purge Fitting
• (2) Buna O-Rings
• (1) Bolt
• (1) Wiring Harness Tie-Down
