Performance Intercooler Kit

misMMINT-CTR-17KBKWBK

Color
$1,397.95
$1,397.95 $1,538.00
Shipping calculated at checkout.

I have read Axion's store policies on returns, refunds, and cancellations. I also understand that when marked on the product page, special order items may not be canceled for any reason.

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed
Up to 9% off

FITS: 10th Gen Honda Civic Type-R

KEY FEATURES
  • Direct fit for the 2017-2021 Honda Civic Type R
  • 4.7-in thick intercooler design optimized for maximum flow
  • Also available in custom colors
  • Max power gains of up to 10 whp and 10 wtq
  • Drops outlet air temperatures by 50F on stock tuning
  • Optimal core design for maximum cooling efficiency with minimal pressure drop
  • Intercooler volume increased by 169-percent and external fin surface area by 189-percent
  • 2.5-in piping diameter improves flow characteristics
  • Mandrel-bent aluminum cold-side piping for increased durability

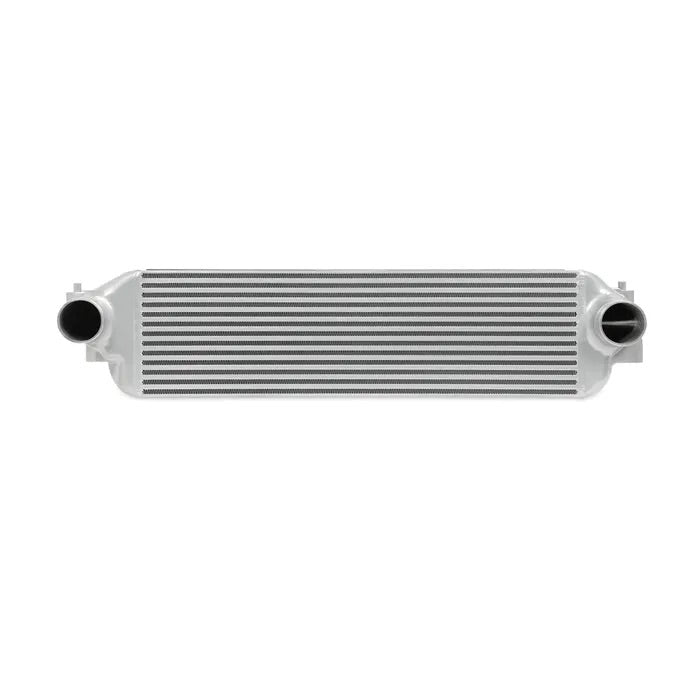

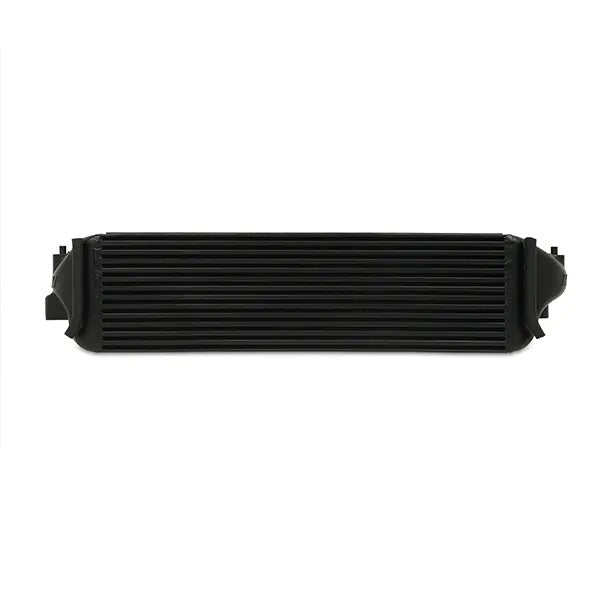

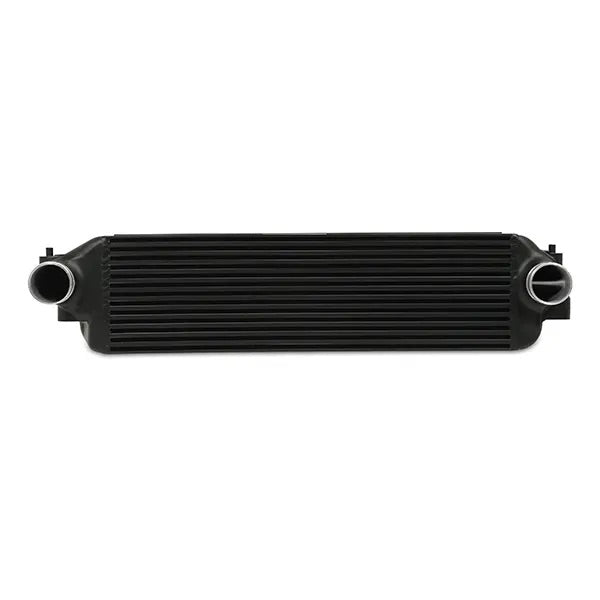

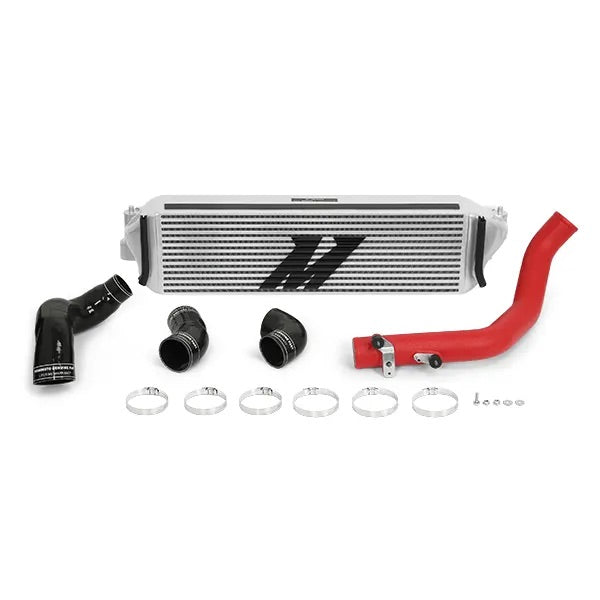

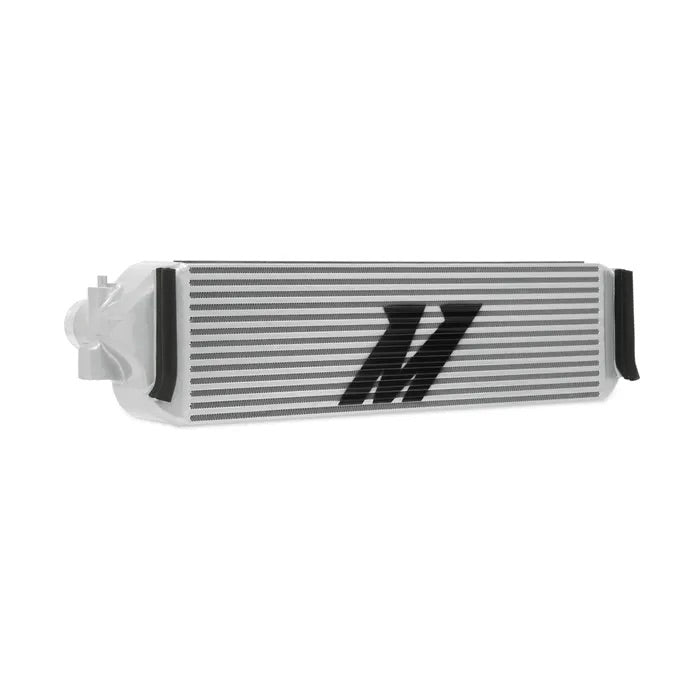

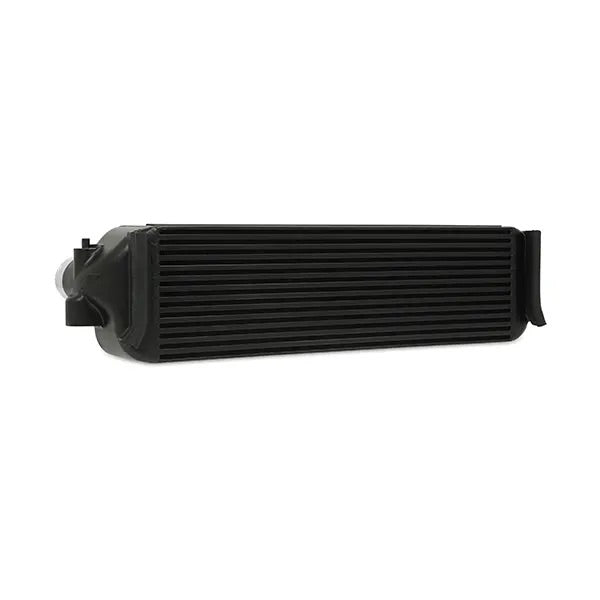

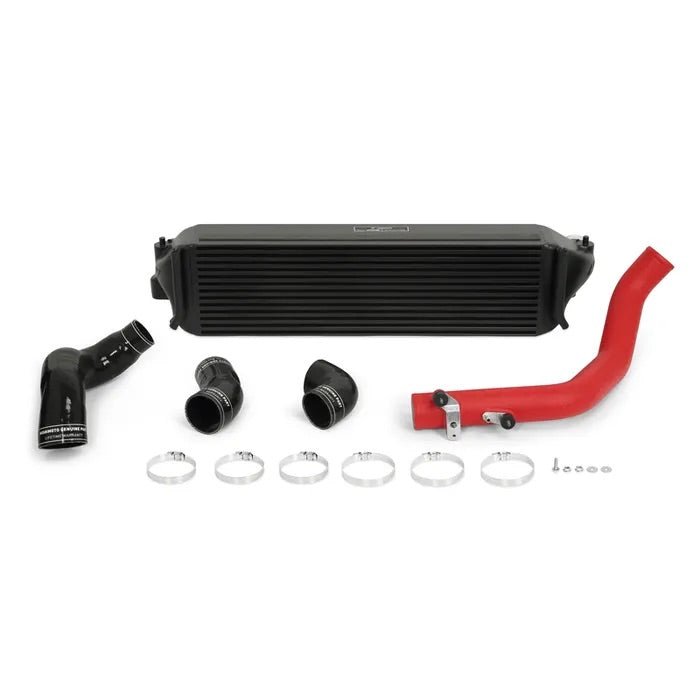

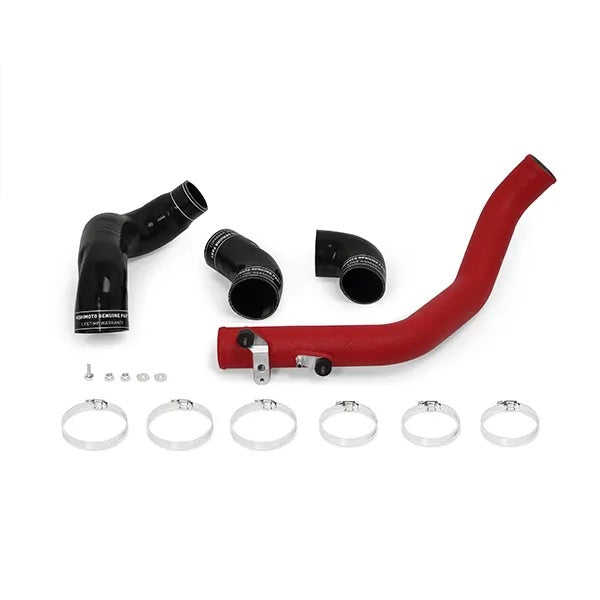

  • Available in silver or black intercooler with the option of wrinkle black or wrinkle Rally Red piping

It's no easy feat to be dubbed as one of the fastest front-wheel drive production cars in the world. Honda put all of their engineering prowess behind this achievement, but since the 2017-2021 Honda Civic Type R finds itself in the gray area of track fiend and commuter car, some sacrifices had to be made. One of those sacrifices comes in the form of the underperforming intercooling system. Under intense driving conditions or just being caught in a sweltering summer day, the stock tube-and-fin intercooler soaks with heat, quelling the performance of your CTR.

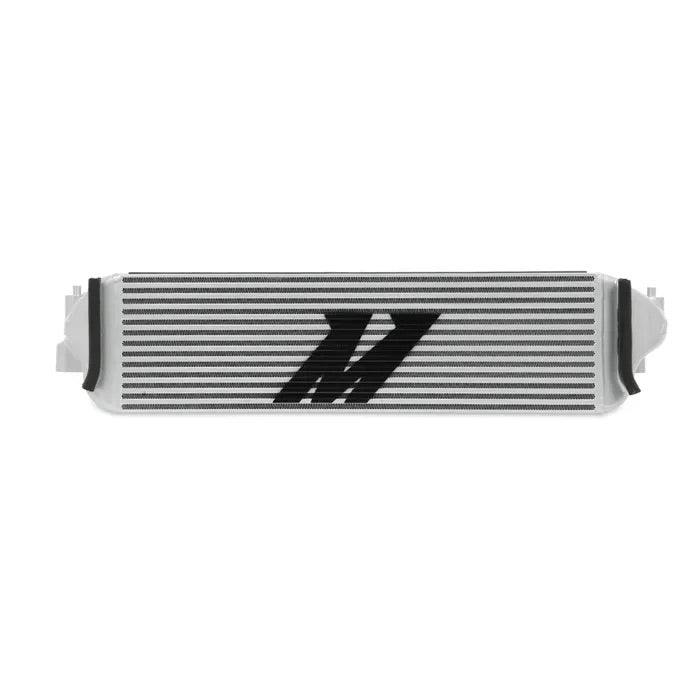

We here at Mishimoto aim to put that power back into your hot-Honda by keeping it cool with the Mishimoto 2017-2021 Honda Civic Type R Performance Intercooler Kit. We started by increasing the overall size of the core to more than double that of the stock dimensions. The 4.7-inch thick core boasts a 169% increase in overall volume and bumps the external fin surface area by 189% for optimal heat rejection properties.

We didn't stop with the size increase either. To keep the charged air flowing properly through the larger core, we updated to a bar-and-plate core construction. The robust design offers not only improved flow characteristics but also aids in transferring heat away from the charged air. The plastic end tanks are a thing of the past and have been replaced with our sleek cast aluminum designs to more effectively direct airflow to and from the piping.

With the Mishimoto Performance Intercooler Kit, the intercooler isn't the only component that received an update. We took the liberty of overhauling the entire intercooling system. Honda carried some of those sacrifices in the name of mass production over to the intercooler piping as well. The restrictive piping diameters limit the K20C1's potential to turn up the boost with tunes, and the rubber sections are destined to deteriorate down the line. We updated these charged air channels with a 2.5" mandrel-bent aluminum cold-side pipe. The rubber sections, including the hot-side pipe, were swapped for 5 layers of heat-resistant silicone. Both characteristics will increase the airflow through the system and make sure you never experience a boost leak.

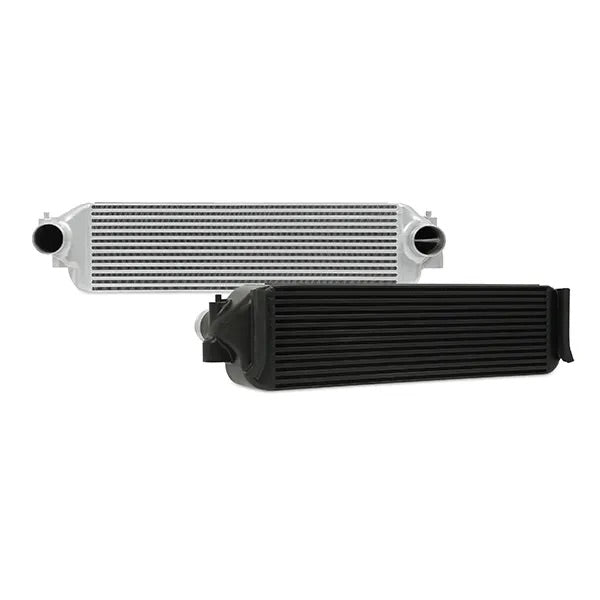

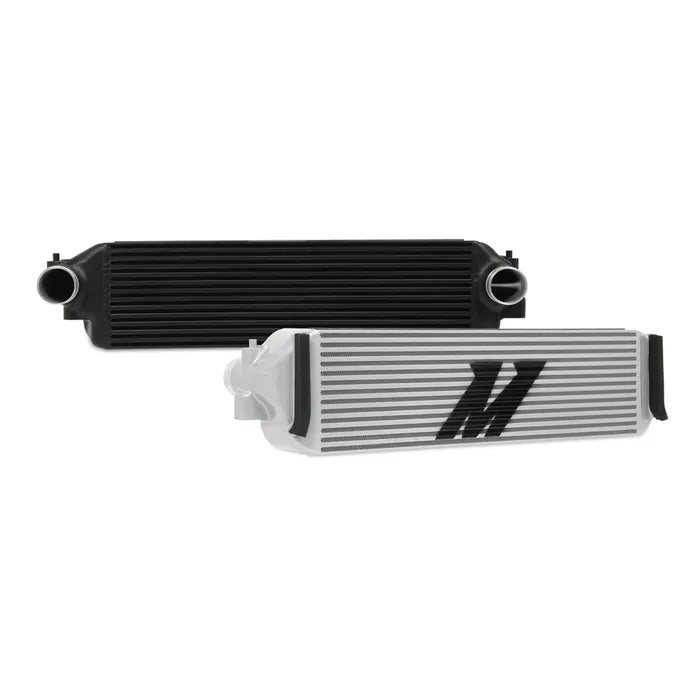

The Mishimoto 2017-2021 Honda Civic Type R Performance Intercooler Kit comes with either a black or silver intercooler, with the option of wrinkle black or wrinkle red piping to match your style. This kit also includes the Mishimoto Lifetime Warranty to keep you boosting around the track worry free.
APPLICATIONS 2017-2021 Honda Civic Type R
ENGINE CODES K20C1
CHASSIS CODES FK8
CORE TYPE Bar-and-Plate
INLET (IN) 2.5
OUTLET (IN) 2.5
INSTALLATION NOTES 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).



DOWNLOADS

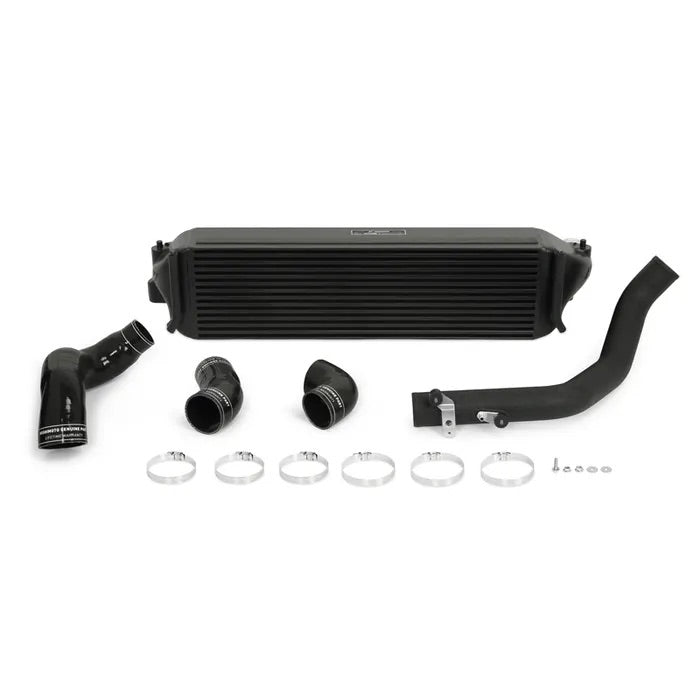

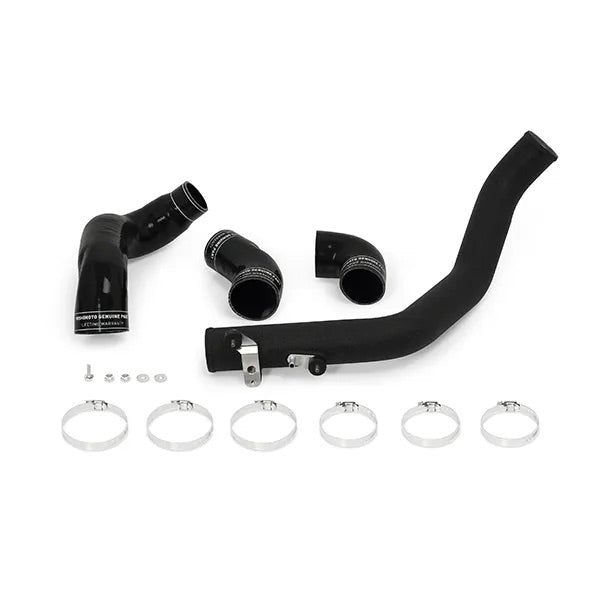

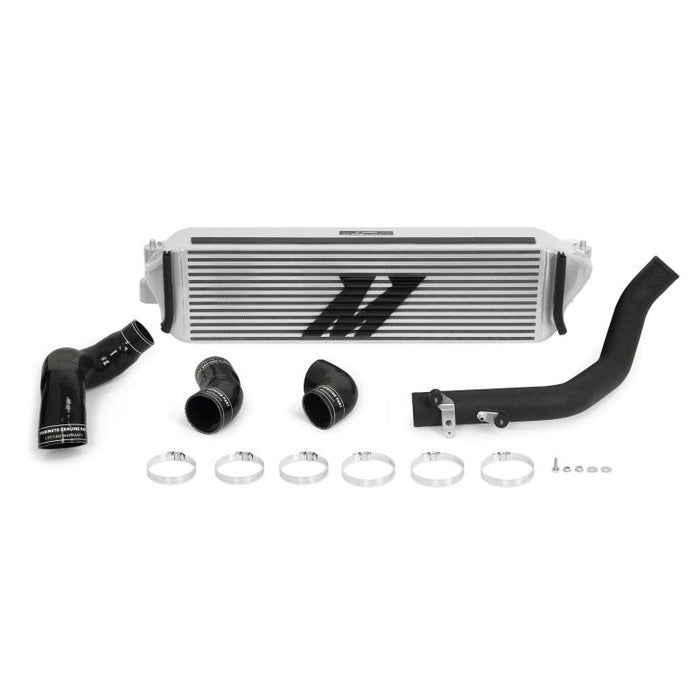

INCLUDES

  • (1) Intercooler
  • (1) Mandrel-Bent Aluminum Cold-Side Pipe

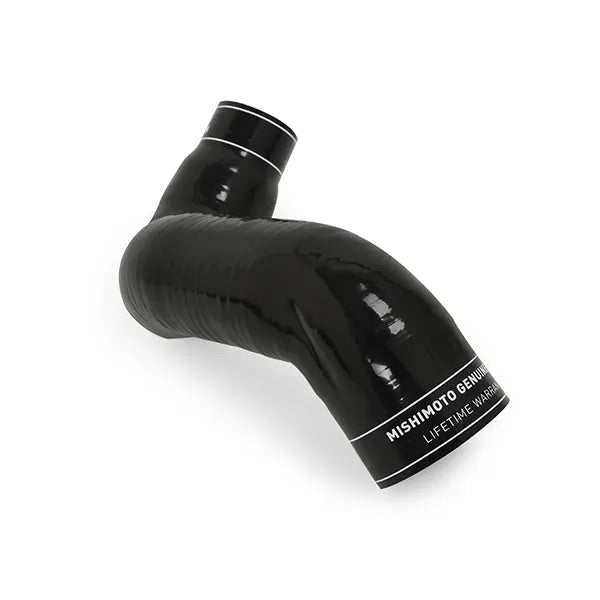

  • (1) Silicone Hot-Side Pipe
  • (2) Silicone Couplers
  • (6) High-Torque Worm Gear Clamps
  • (1) CARB EO Sticker
  • Mounting Hardware
  • Mishimoto Lifetime Warranty
