Nostrum 2017-2020 Ford F-150 and Raptor 3.5L EcoBoost High Pressure Fuel Pump

H086-1757

$1,599.00
$1,599.00
Shipping calculated at checkout.

I have read Axion's store policies on returns, refunds, and cancellations. I also understand that when marked on the product page, special order items may not be canceled for any reason.

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

FITS: 2017-2020 Ford F-150 and Raptor 3.5L EcoBoost

Added fuel capacity also allows you to dial in more boost earlier, resulting in a substantial increase in low end torque. The Nostrum HPFP is also ethanol compatible so you also have the added benefit of being able to run E85 or other ethanol blends.

The Ultimate Fueling Solution For the Gen2 3.5L EcoBoost Engine

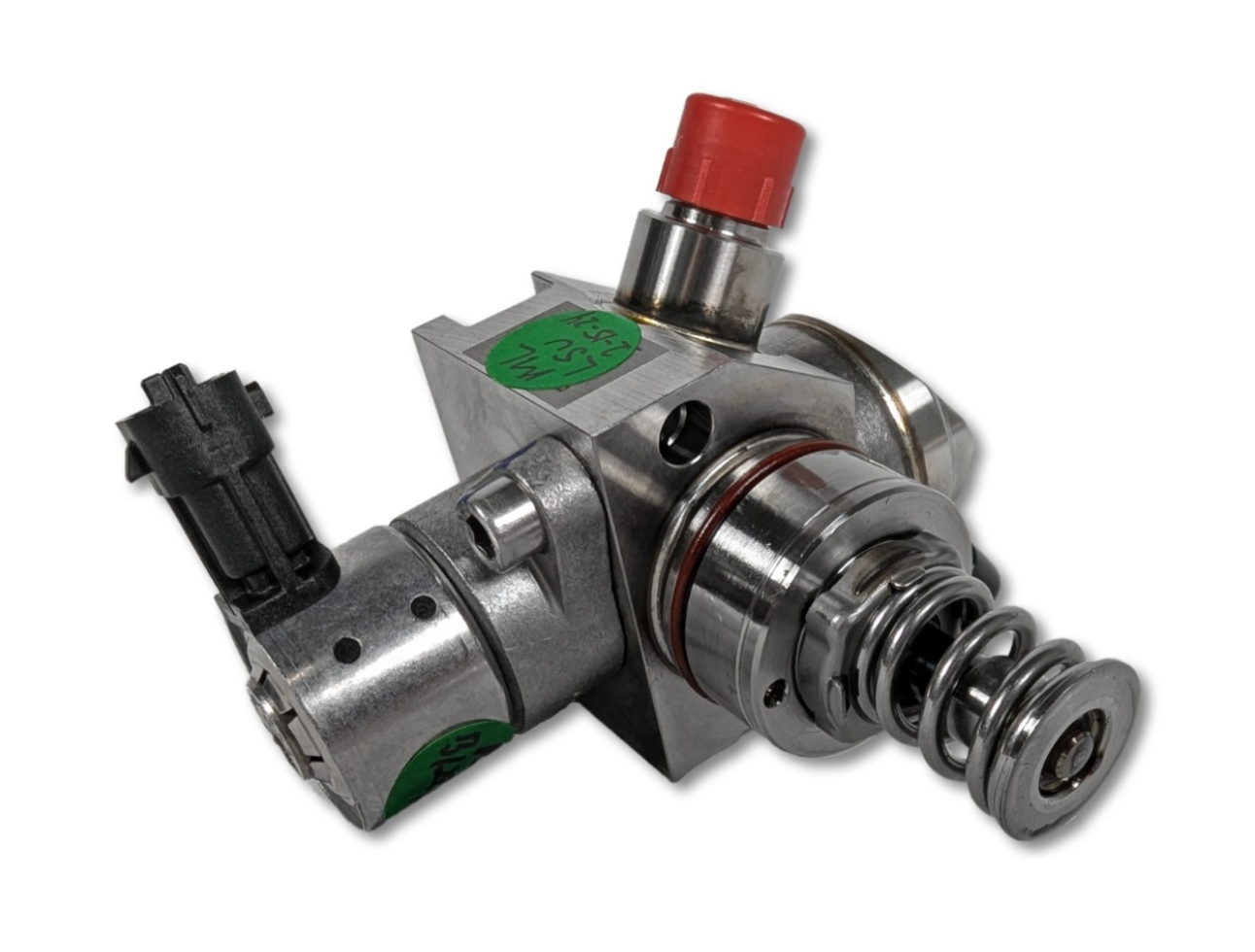

Nostrum’s high pressure fuel pump (HPFP) for the 2017-2020 Ford F150, including the F150 Raptor, with the Gen 2 3.5L EcoBoost engine, is capable of flowing 36% more fuel than the factory fuel pump. The additional HPFP fuel flow allows you to maintain the factory 60/40 GDI/PFI split while increasing power levels even with stock GDI & PFI injectors.

The added fuel capacity also allows you to dial in more boost earlier, resulting in a substantial increase in low end torque. The Nostrum HPFP is also ethanol compatible so you also have the added benefit of being able to run E85 or other ethanol blends.  Running ethanol is one of the best things you can do for your turbocharged vehicle, as it has a higher octane rating and is less prone to knock than 91/93 pump gas, and you have the potential to make more power as a result. Nostrum offers tuning support for HP Tuners and SCT software including preconfigured calibration data via SCT Value Files.

Application List

  • 2017-2020 F150 3.5L EcoBoost
  • 2017-2020 Raptor 3.5L EcoBoost
  • 2018-2020 Expedition 3.5L EcoBoost
  • 2018-2020 Navigator 3.5L EcoBoost

Features & Benefits

  • +36% increase in HPFP fuel capacity over stock
  • E85 compatible
  • Fully welded stainless steel construction
  • 250 bar (25 MPa or 3625 psi) maximum operating pressure
  • Compatible with OEM low-pressure and high-pressure fuel lines
  • Serialized & 2D coded for traceability
  • Pumps are 100% dynamically tested at multiple RPM and pressure test points
  • Tested and validated calibration data available including preconfigured calibration data via SCT Value Files.

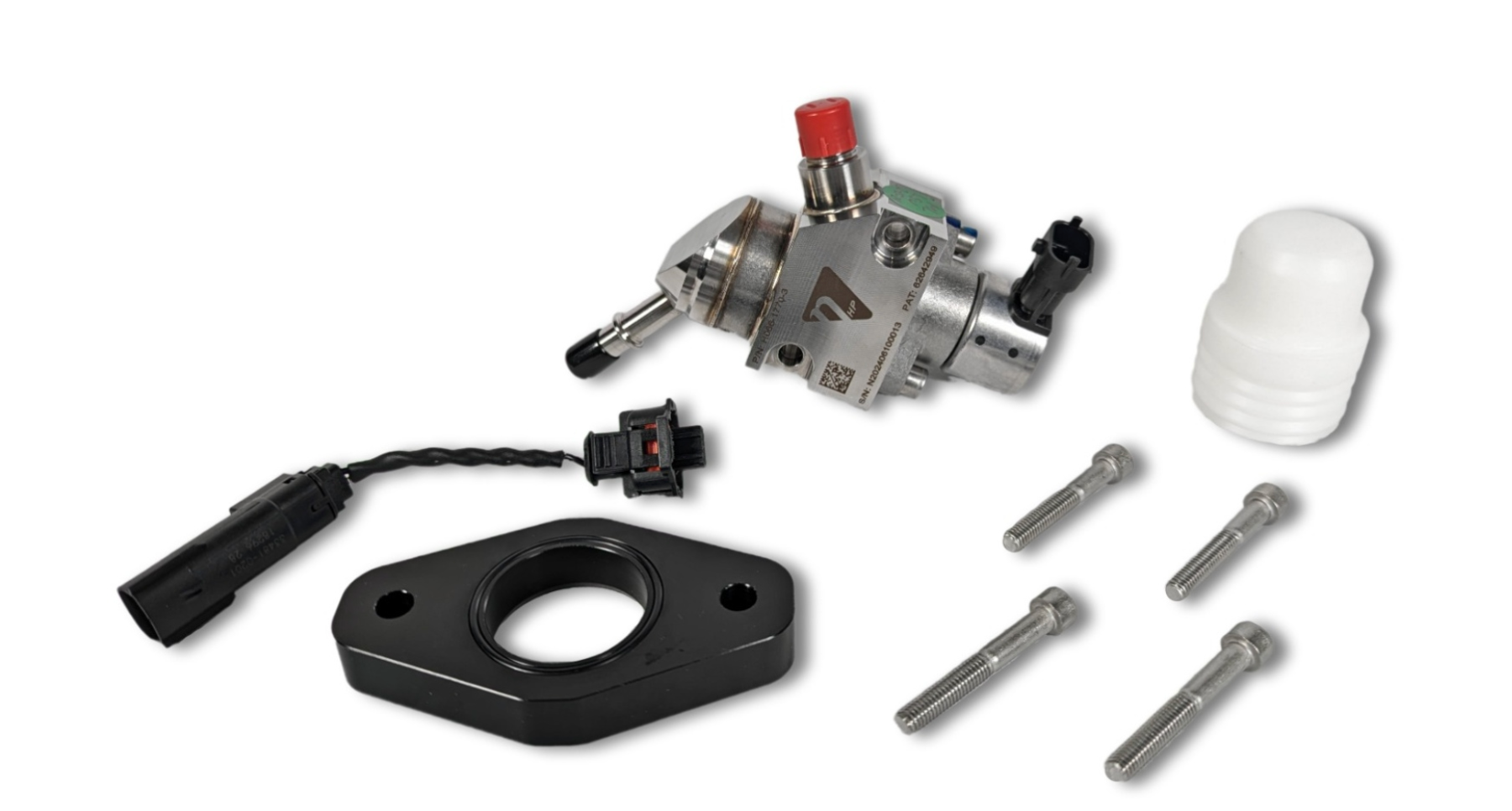

Included in the Box

  • High pressure fuel pump with integrated SAE 3/8” Quick Connect fitting
  • Pump mounting flange (black)
  • Electrical harness adapter
  • Pump and flange mounting hardware
  • Flange alignment tool
  • Protective caps to maintain fuel system cleanliness during the installation process
  • Detailed installation instructions
  • Product data sheet with part number, serial number and pump flow data

Testing Outcomes
