KTunerFlash V1.2 10th Gen Honda Civic 2.0

FITS: 10th Gen Honda Civic 2.0 CVT and MT

PRIOR TO ORDERING:  Axion Industries is not liable for any issues with installation.  All tunes require a professional, especially in order to troubleshoot any issues.  Should you need assistance, please contact KTuner directly.

WARNING: KTuner is for off-road research and development testing only. Every vehicle should be flashed back to factory before being driven on a public road.

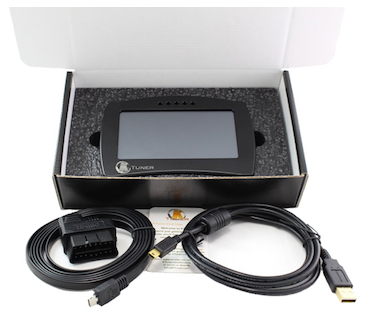

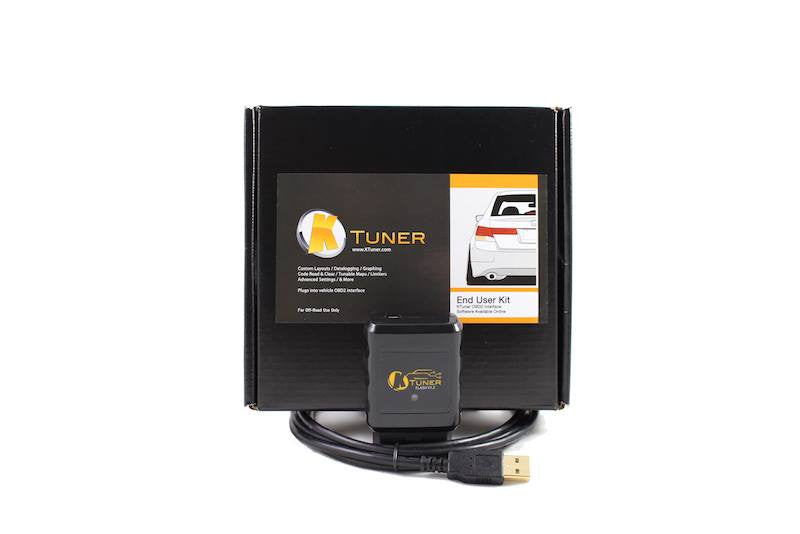

The KTunerFlash V1.2 is the latest KTunerFlash hardware available from KTuner for flashing all of our supported KTunerFlash OBD applications. This is replacing our existing KTunerFlash V1 End User Kit and it's a HUGE upgrade.

Features:

• Locked to one vehicle at a time
• Allows flash tuning and datalogging, via our KTuner software
• On board logging - Setup the unit to log without a laptop
• Five custom tune storage - just like our KTunerFlash V2, the KTunerFlash V1.2 offers tune storage for factory plus five additional tunes
• Deep Sleep Mode - Like our KTunerFlash V2, the unit will go into Deep Sleep Mode with no activity
• Bluetooth integration - Compatible with our TunerView App for Android
• The TunerView App for $4.99 adds these capabilities:
• Real-time display gauges
• Multiple configurable layouts
• Record video with overlay gauges
• FLASH loaded tunes directly from the app!

• KTunerFlash end user system – hardware/software
• Datalog and flash on your own – $499

Part numbers for usable ECUs include:

North America Civic 2.0 2016+ MT:

• 37820-5BA-A01 through A14

CVT:

• 37820-5BA-A61 through A64
• 37820-5BA-L61 through L64
• 37820-5BA-A71 through A74
• 37820-5BA-L71 through L74
• 37820-5BA-A71 through A74
• 37820-5BA-A81 through A84
• 37820-5BA-A91 through A94

International:

• 37820-5BA-C11 through C14
• 37820-5BA-C21 through C24
• 37820-5BA-C31 through C34
• 37820-5BA-C51 through C54
• 37820-5BA-C71 through C74
• 37820-5BA-C81 through C84
• 37820-5BA-K01 through K04
• 37820-5BA-K51 through K54

We are currently offering one research calibration with more to come in the future. The tune can be ran with 87 octane fuel, but running 91+ will give the best results.

Tune 1:

• Improved throttle response
• VTEC lowered to 5600 mid-range and top-end power increases Flash back to stock at any time
