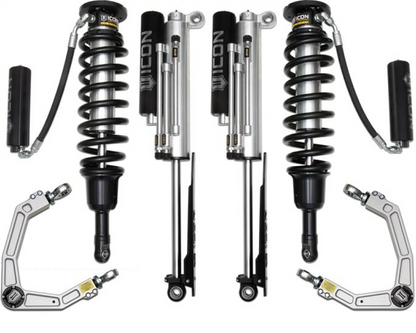

ICON 2017-2020 Ford Raptor Stage 2 Suspension System

icoK93152

$9,400.00
$9,400.00
Shipping calculated at checkout.

I have read Axion's store policies on returns, refunds, and cancellations. I also understand that when marked on the product page, special order items may not be canceled for any reason.

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

FITS: 2017-2020 Ford Raptor

After hundreds of hours of R&D and thousands of miles of real world on and off-road testing, ICON engineers have developed products that provide a true performance upgrade over the factory components found on the 2017-2020 Ford F150 Raptor.

Key Features:

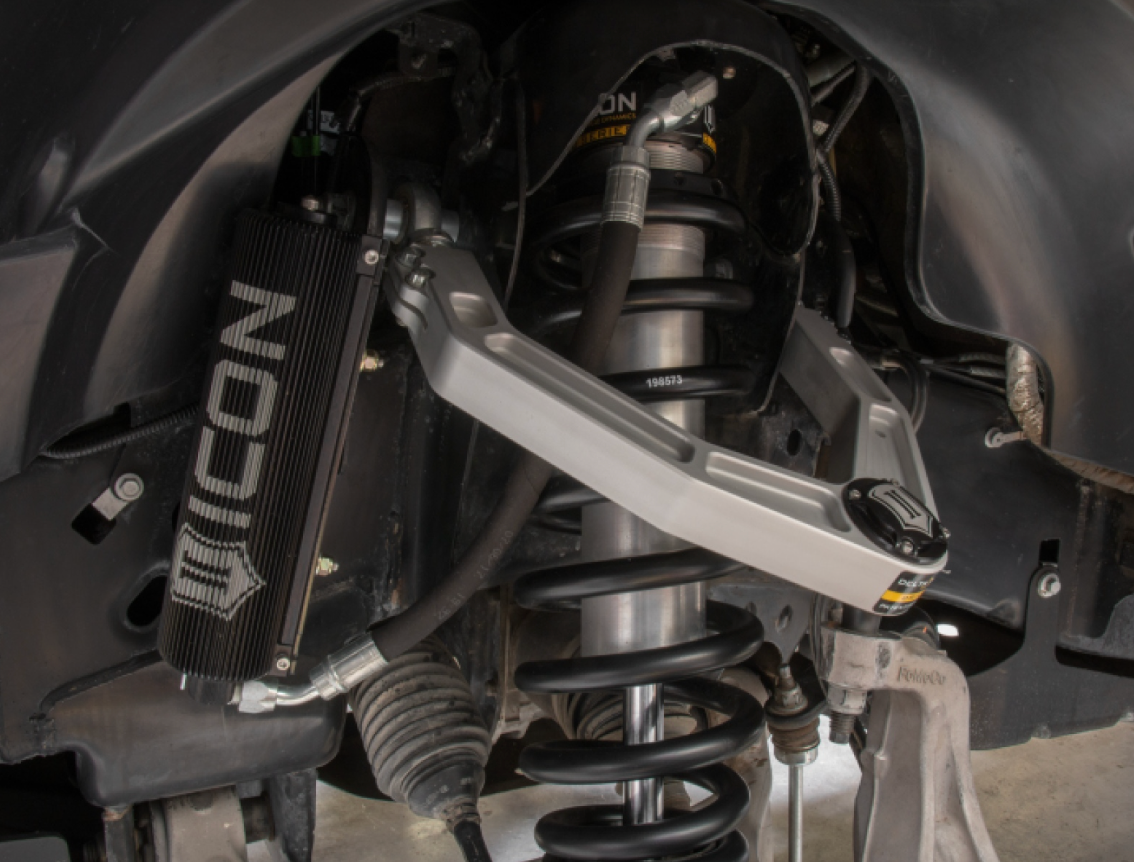

  • Improved Front Suspension: The 3.0 Series coilover is tailored for the Gen. 2 Raptor, offering increased shaft travel, vehicle-specific valving, and enhanced on-road and off-road performance. The multi-stage hydraulic “Bump Zone” enhances bottom-out resistance, ensuring a smoother ride.
  • Enhanced Rear Suspension: The 3.0 Series bypass shock takes advantage of the Raptor's updated rear layout. Designed for maximum wheel travel and precise operation, it features 3 bypass zones and patented Anti-Wobble Link technology, safeguarding the shock shafts in tough off-road conditions.
  • Holistic Engineering Approach: ICON focuses on the entire vehicle, not just individual components. Our "holistic engineering" philosophy produces parts that work harmoniously, delivering balanced on and off-road performance enhancements.
  • Proudly Made in the USA: All ICON Vehicle Dynamics products are meticulously designed, manufactured, and assembled in Riverside, California. Our reputation for quality, performance, and exceptional service makes ICON the go-to choice for 2017-2020 Ford F150 Raptor suspension upgrades.

FEATURES & BENEFITS

  • 3.0 SERIES COILOVER SHOCK KIT
  • Adjustable coilovers yield 1-3” of front lift height
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
  • Superior low speed control reduces body roll and increases on-road stability
  • Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
  • ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
  • 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
  • Barreled coil spring design maximizes travel and provides more efficient packaging
  • High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
  • Heavy duty CNC machined 1” shock shafts
  • CAD plated shock body with hard anodized piston and top cap
  • 3.0 SERIES 3-TUBE BYPASS SHOCK KIT
  • 3-tube bypass design and "Bump Zone" technology provides multiple unique zones of damping and rebound control
  • 12" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping
  • Offset upper eyelet with patented ICON Anti-Wobble link for optimized shock mounting and packaging
  • Easy-to-adjust detented knobs offer quick adjustability without the use of tools
  • Specially engineered damped valve stops for quiet and precise operation without the loud “clicking” noise common with other brands
  • FK Rod End COM12 spherical bearings ensure maximum strength and durability
  • Urethane shin guards help to protect the shock shaft & rod end from premature wearCAD plated shock body with hard anodized piston and top cap
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Bolt-in design makes for an easy install into OEM shock location

TECH INFO

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • TECH NOTE: 2019-2020 VEHICLES WITH FACTORY LIVE VALVE SHOCKS WILL NEED AN ICON DAMPER INTERFACE DEVICE (PN: 95199) TO ALLOW THE VEHICLE DRIVE MODES TO OPERATE CORRECTLY WITH THE OE SHOCKS REMOVED.
  • Ships in multiple boxes

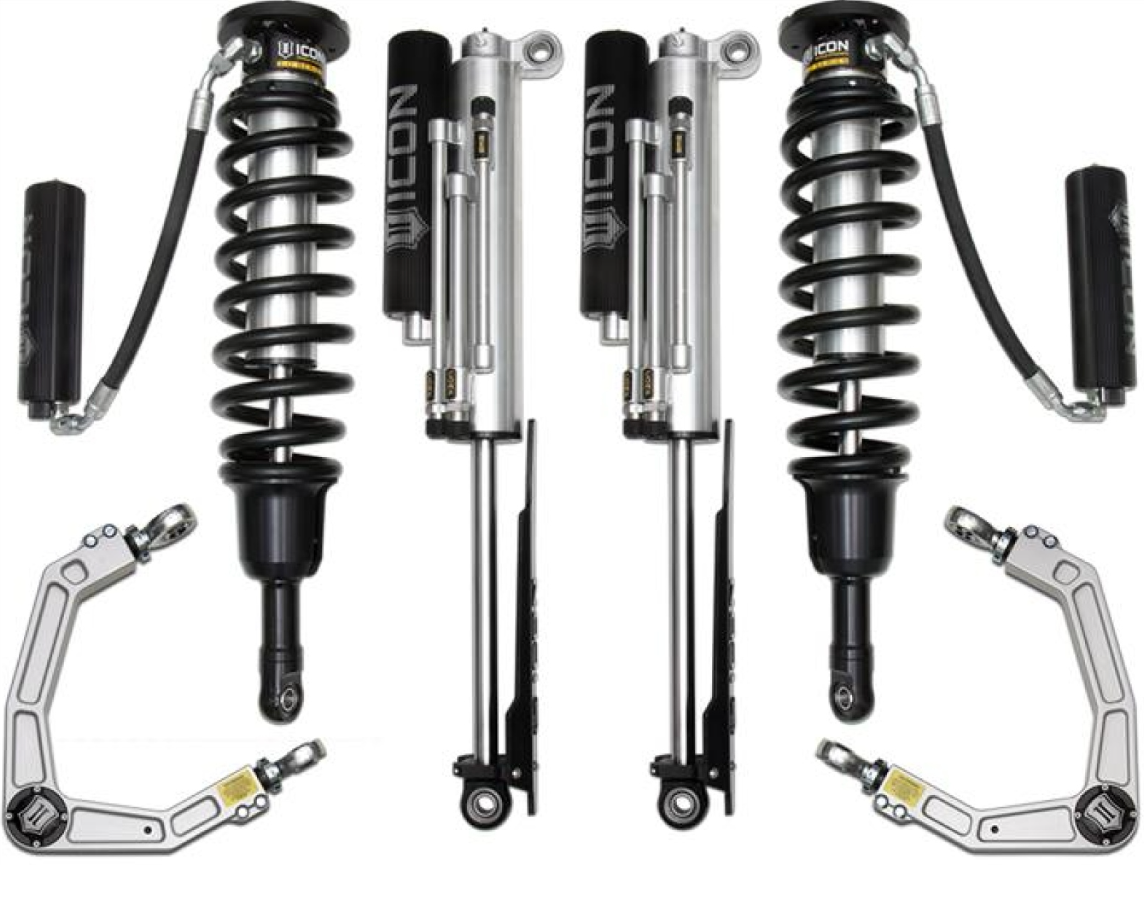

SYSTEM COMPONENTS

  • 95002 (QTY: 1) | 17-20 RAPTOR FRONT 3.0 VS RR CDCV COILOVER KIT
  • 98562DJ (QTY: 1) | 10-20 RAPTOR BILLET UCA DJ KIT
  • 95205 (QTY: 1) | 17-20 RAPTOR REAR 3.0 PB PAIR
ICON 2017-2020 Ford Raptor Stage 2 Suspension System
