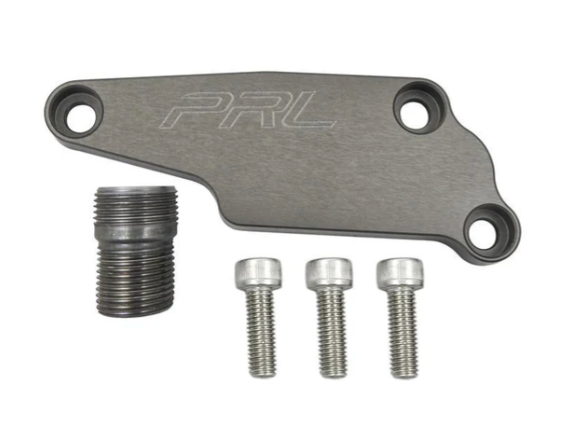

Honda K24Z Oil Filter Housing Block-Off Plate Kit

Honda K24Z Oil Filter Housing Block-Off Plate Kit

$64.99 USD

Shipping calculated at checkout

SKU: PRL-HC9-OIL-PLATE

FITS:

  • 9th Gen Honda Civic Si
  • 2nd Gen Acura TSX

When building the K24Z motors like the 9th Gen Civic Si and TSX to turn out big power and 8000+ rpms the factory oiling system becomes inefficient and problematic due to the balance shafts the OEM oil pump uses. The most common and cost-effective solution to this is swapping in the Acura RSX Type-S PRB oil pump to eliminate the balance shafts and better supply oil.

This kit is required to block-off the factory oil filter housing location at the bottom of the K24Z block when doing the a PRB/Type-S oil pump swap and relocates the filter location to the top of the block like the rest of the K-Series motors.

NOTE: THE FACTORY K24Z-STYLE OIL PUMP MUST BE SWAPPED TO A PRB-STYLE OIL PUMP WHEN USING THIS BLOCK-OFF PLATE. NOT DOING SO WILL RESULT IN THE LOSS OF ALL OIL PRESSURE

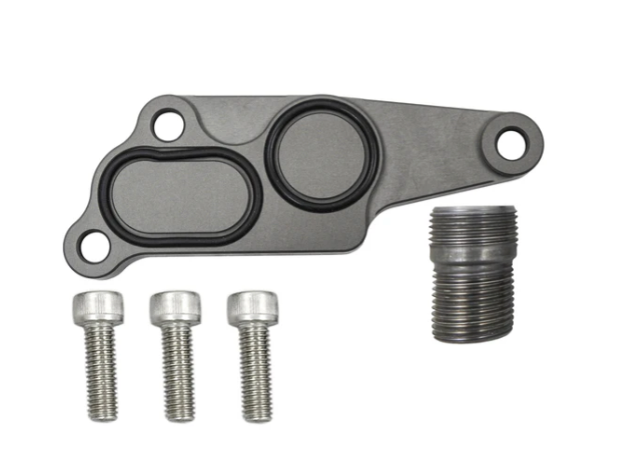

Kit Includes:

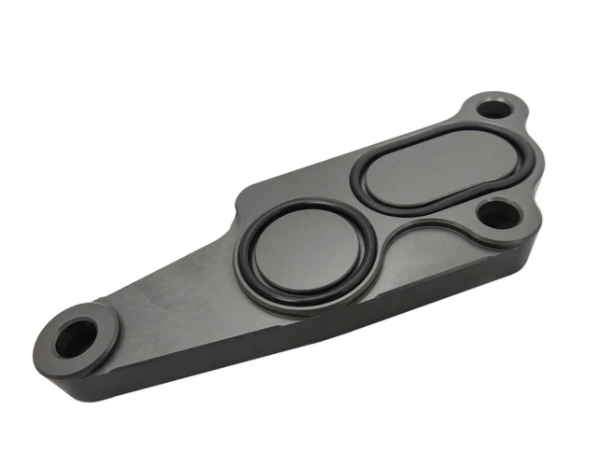

  • Oil Pump Block-Off Plate
  • (2) OEM Honda O-Rings
  • (3) Stainless Steel Socket Head Cap Screw Bolts
  • OEM Honda Oil Filter Holder
