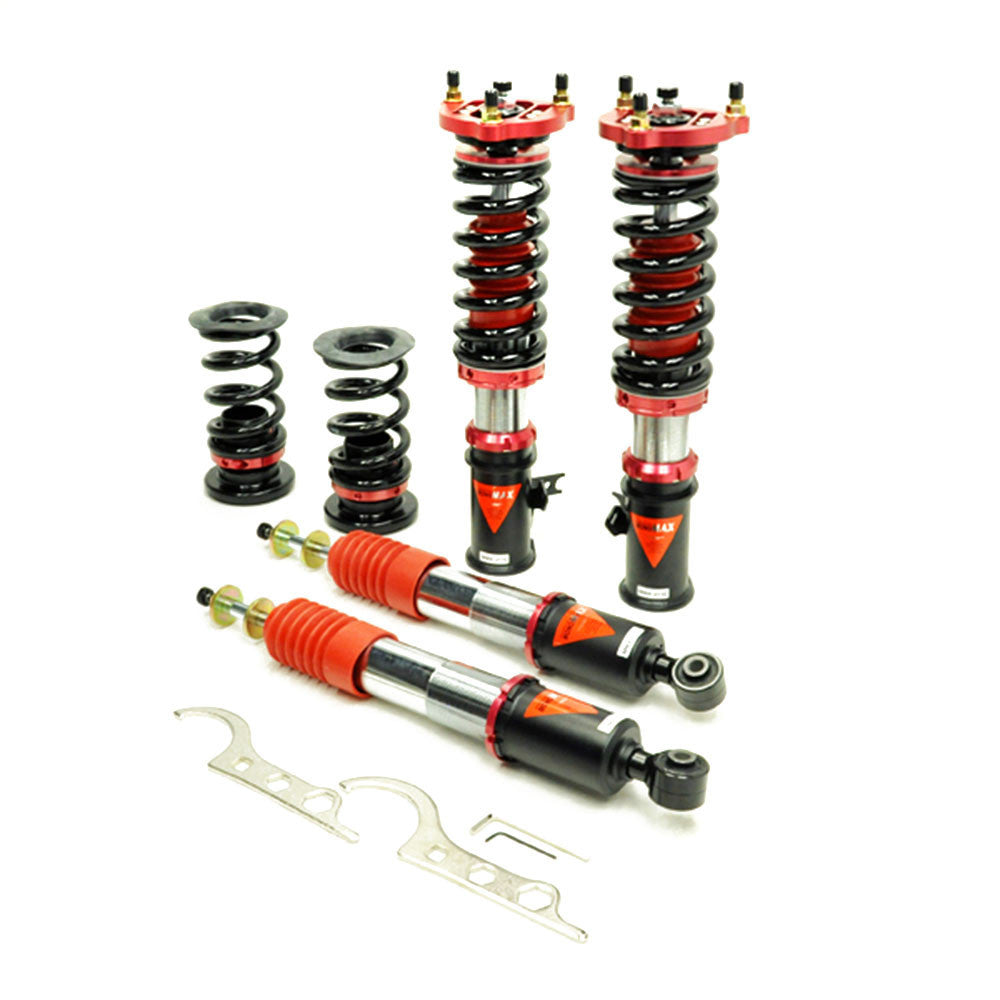

HONDA CIVIC (FA/FG) 8th Gen GODSPEED MAXX COILOVERS

Fits: 8th Gen Honda Civic (FA/FG)

The Godspeed Project MAXX coilover is for the tuners that want a track-oriented setup that also provides daily commute comfort. With 40 levels of damping valve adjustment, you can easily adjust from stiff to soft simply by twisting the knob.

Featuring mono-tube design with a large capacity 52 mm dia. JIS seamless carbon steel shock body, filled with IP F.A. 5W damper oil, with properly valved 44 mm internal pistons to endure competitiveness on a track course or daily spirited driving on public road.

Cold wound springs are made from high-tensile SAE9252 steel to ensure durability.

Vehicle ride heights are adjusted with lower brackets to offer maximum shock travel in order to provide comfort, compared to lowering springs alone.

Mostly billet aluminum hardware accessories are used for its weight-saving property in order to reduced overall weight of the coil-over system, yet remain durable.

All parts are replaceable and most importantly, shock absorbers can be rebuilt for customization, or simply purchase replacement cartridge without spending too much for a completely new coil-over system.

Specs:

• Spring rates: Front: 10 kg/mm (560 lbs/inch) / Rear: 14 kg/mm (784 lbs/inch)
• Spring length front: 180mm

• Spring length rear: 140mm

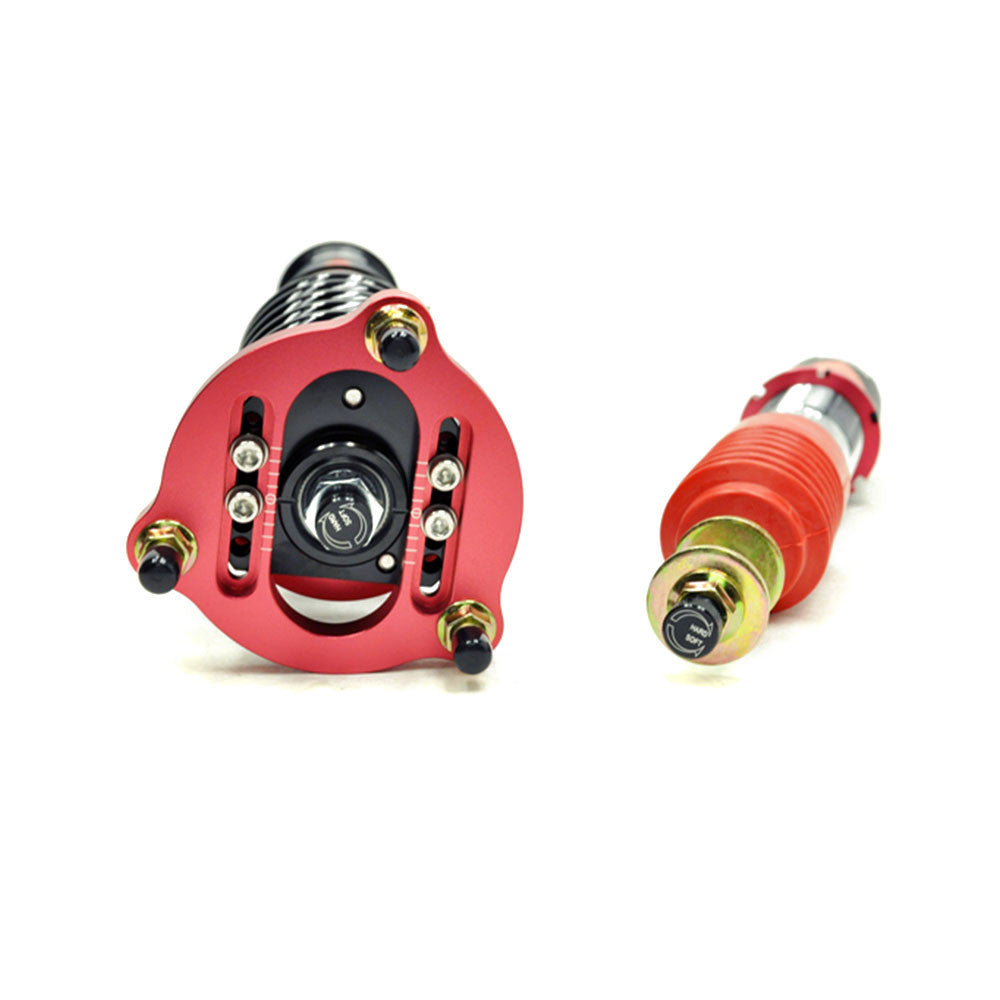

• Camber plate (front): Yes (with pillowball)
• Camber plate (rear): No
• Spring inner diameter (front): 62mm (2.44 inch)
• Spring inner diameter (rear): 62mm (2.44 inch)

Features:

• 52mm stainless steel mono-tube design with anodized shock body, with anti-corrosion coating
• 44mm internal piston
• T7075 forged aluminum / carbon steel brackets.
• 40 precise levels of damping force adjustment
• Aluminum and steel hardware accessories
• SA E9252 steel performance springs
• Independent ride height and spring tension and height adjustment
• Italian IP F.A.-made shock oil provides high viscosity index to withstand intense track usage and great for everyday driving
• Shock absorber can be rebuilt when worn out
• Full 1-year limited warranty from date of purchase

INSTALLATION NOTES: Install by experienced professionals is highly recommended.  Prior to installation, verify all hardware and properly preload suspension to 5-10mm(1/4-3/8in).
