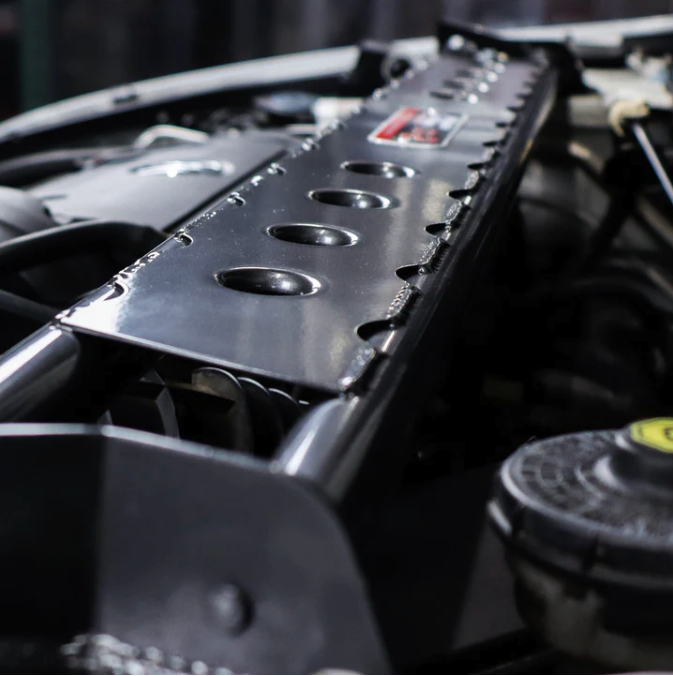

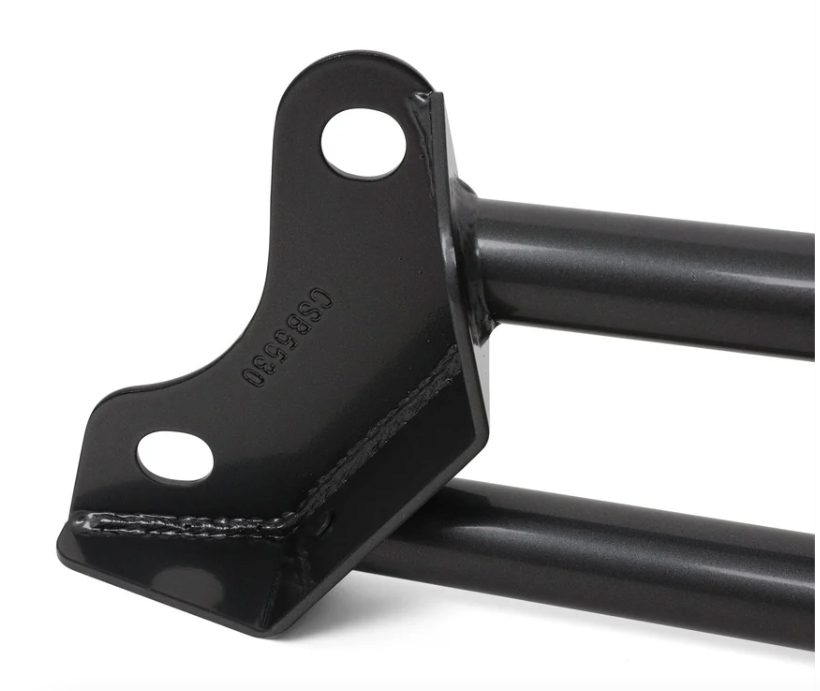

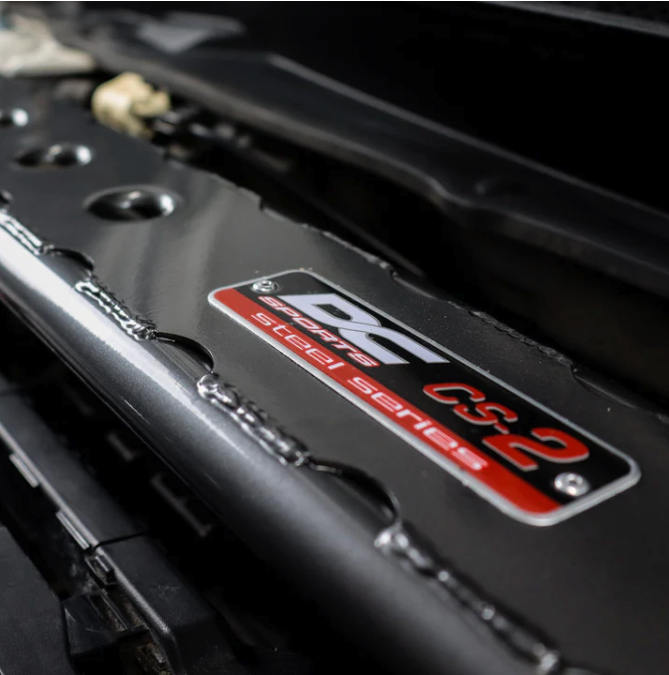

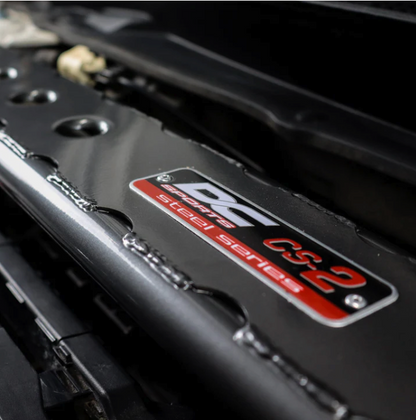

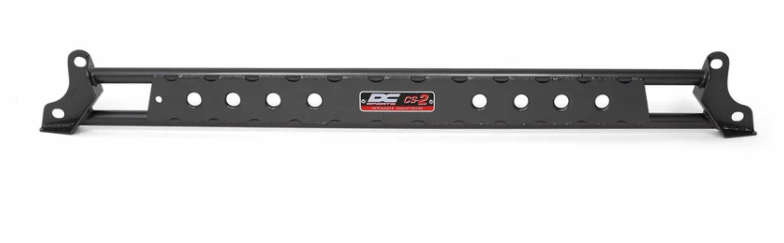

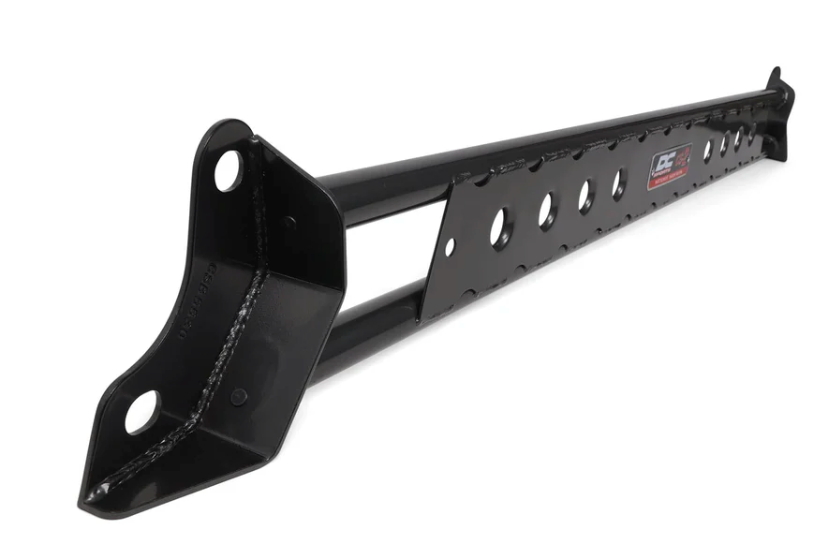

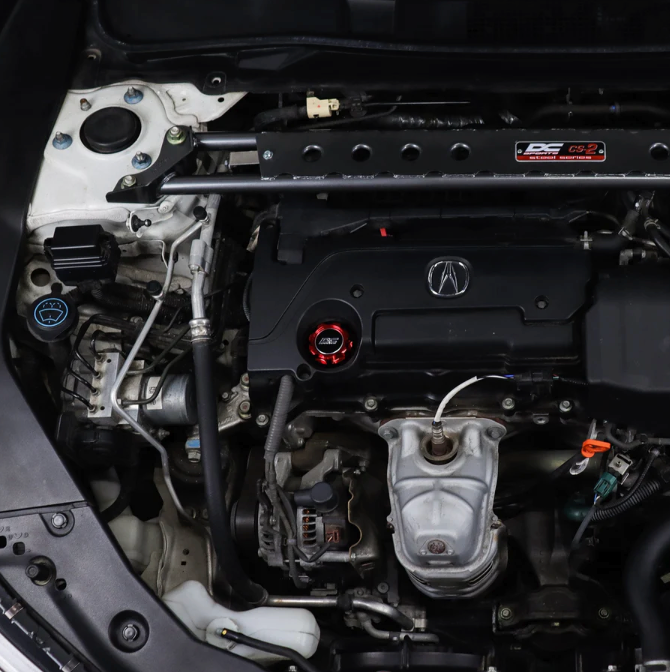

The DC Sports Front Strut Bar for the 2015-2020 Acura TLX is a simple yet effective upgrade to enhance your vehicle's handling. Whether you have the 4-cylinder or V6 model, this strut bar ties the front strut towers together to reduce chassis flex, improving cornering stability and overall road performance. Made from a single-piece steel design, it offers a secure, long-lasting fit without the need for constant adjustments, unlike multi-piece alternatives. Perfect for drivers looking to add extra stability and control to their TLX on daily drives or spirited runs. Â
- With the car set on the ground, remove four (4) 10 mm nuts securing OEM strut reinforcement brace.
- Remove two (2) 8 mm nuts securing strut brace to the strut mount.
- Remove the OEM strut reinforcement brace. STEPS 4&5 ONLY APPLY TO 4CYL APPLICATIONS
- Loosen clamp holding down intake sound tube and gently lift to remove.
- Insert provided plug and retighten the oem clamp.
- Locate the bracket that holds the AC line to the passenger shock tower. Remove the one (1) 6mm bolt. This bold will be reused.

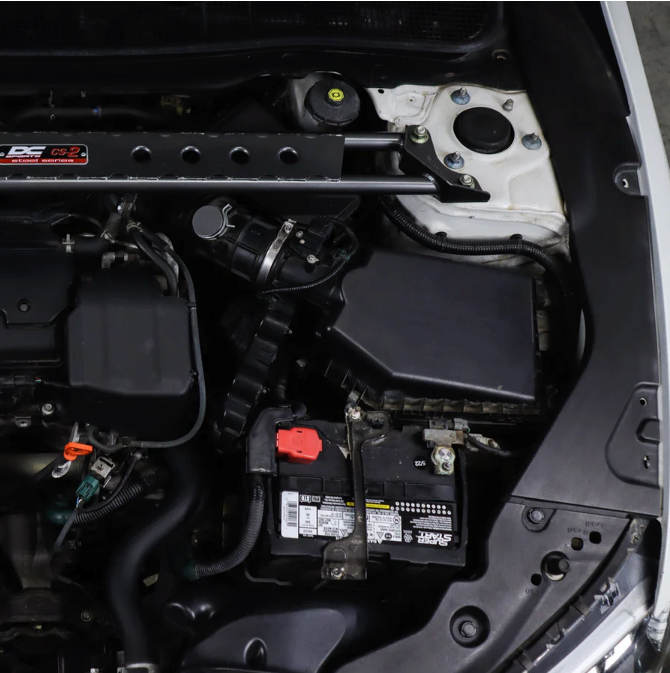

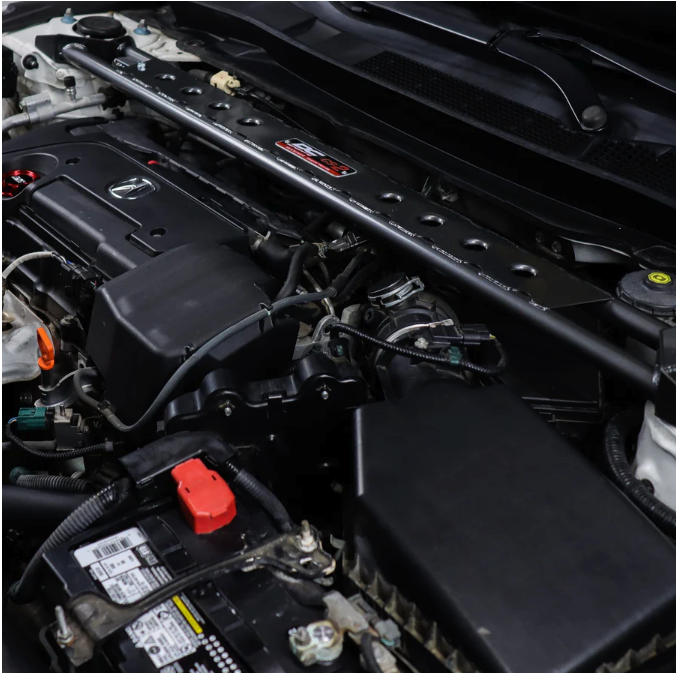

- Install strut bar
- Tighten all four (4) 10mm nuts (Torque: 4.4 kg-m, 32 lb-ft).
- Tighten down two (2) 8mm nuts (Torque to 28lb-ft)
- Using provide bracket and hardware reinstall the AC line retaining bracket.
- RECHECK ALL YOUR WORKÂ Â
