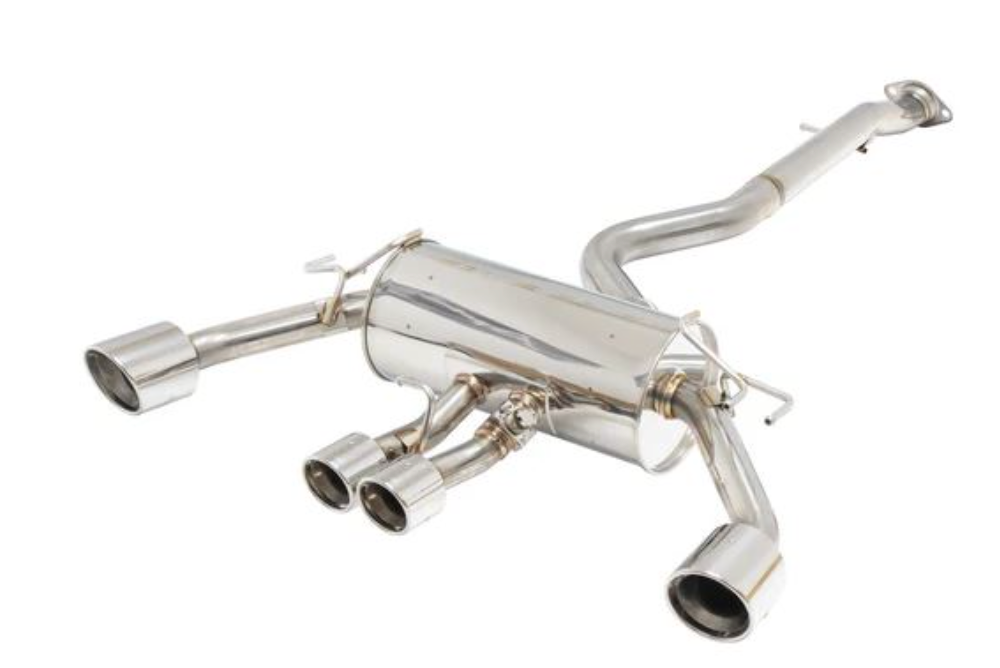

APEXi N1-X EVOLUTION EXTREME CATBACK: GR COROLLA HATCHBACK 23 Non-Resonated

FITS: 2023+ Toyota Corolla GR

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler which emphasizes optimum exhaust efficiency utilizing a straight-thru layout design. Equipped with an internal hybrid silencer uniting power and free flowing characteristics with effective functional sound resonance. A newly adopted muffler tip completes the tail end of the exhaust that serves both purposes of function and form. Constructed with a light weight titanium material rolled and riveted onto a double pipe structure which acts as a diffuser enabling temperature reduction, meanwhile retaining a sporty heat gradiation appearance.

PRODUCT FEATURES:

• High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
• Matched and manufactured for select chassis
• Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
• Made in Japan

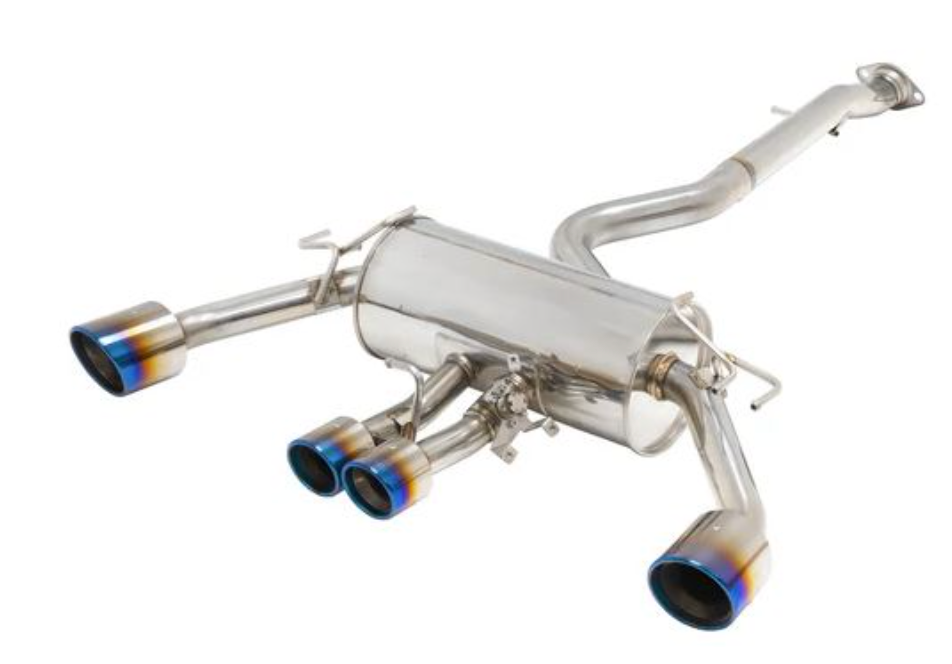

Bolt-On Yes ? Part Number 164-KT23 : Titanium Tips 164AKT23 : Stainless Steel Tips Year 2023+ Make Toyota Model GR Corolla Body Style 5-Door Hatchback Engine G16E-GTS Chassis MZEAZ12 Exhaust Type N1 Evolution Extreme Muffler (N1-X) Piping Diameter 70mm - 60.5mm (Outer Left/Right) x 2 Piping 70mm - 50.8mm (Center Dual) x 2 Piping Tip Diameter Two Center Dual Tips - 93mm Two Outer Tips - 123mm Pieces 2 Exhaust Tip Style - Titanium Round- Dual wall rolled, Angle cut (Riveted) - Stainless Steel  Round- Dual wall rolled, Angle cut (Riveted) Piping Material SUS304 Stainless Steel Muffler Material SUS304 Stainless Steel Tip Material - TP270 Grade - Titanium (Heat Treated Gradient Tips) - SUS304 Stainless Steel - Polished Special Notes Integrated Valved compatible with Factory OE Electronic Module WARNING: California Prop 65 Cancer & Reproductive Harm  www.p65warnings.ca.gov
