Acuity K-Series Fuel Rail

1913-BLK

Color
$199.00
$199.00
Shipping calculated at checkout.

I have read Axion's store policies on returns, refunds, and cancellations. I also understand that when marked on the product page, special order items may not be canceled for any reason.

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

FITS: 8th Gen Honda Civic

NOTE: It fits most K-Series engines except for the direct-injected K20C and K20B engines. Additional fittings are required to adapt to your specific application.  Please email us, prior to ordering, if you are unsure of what you need.

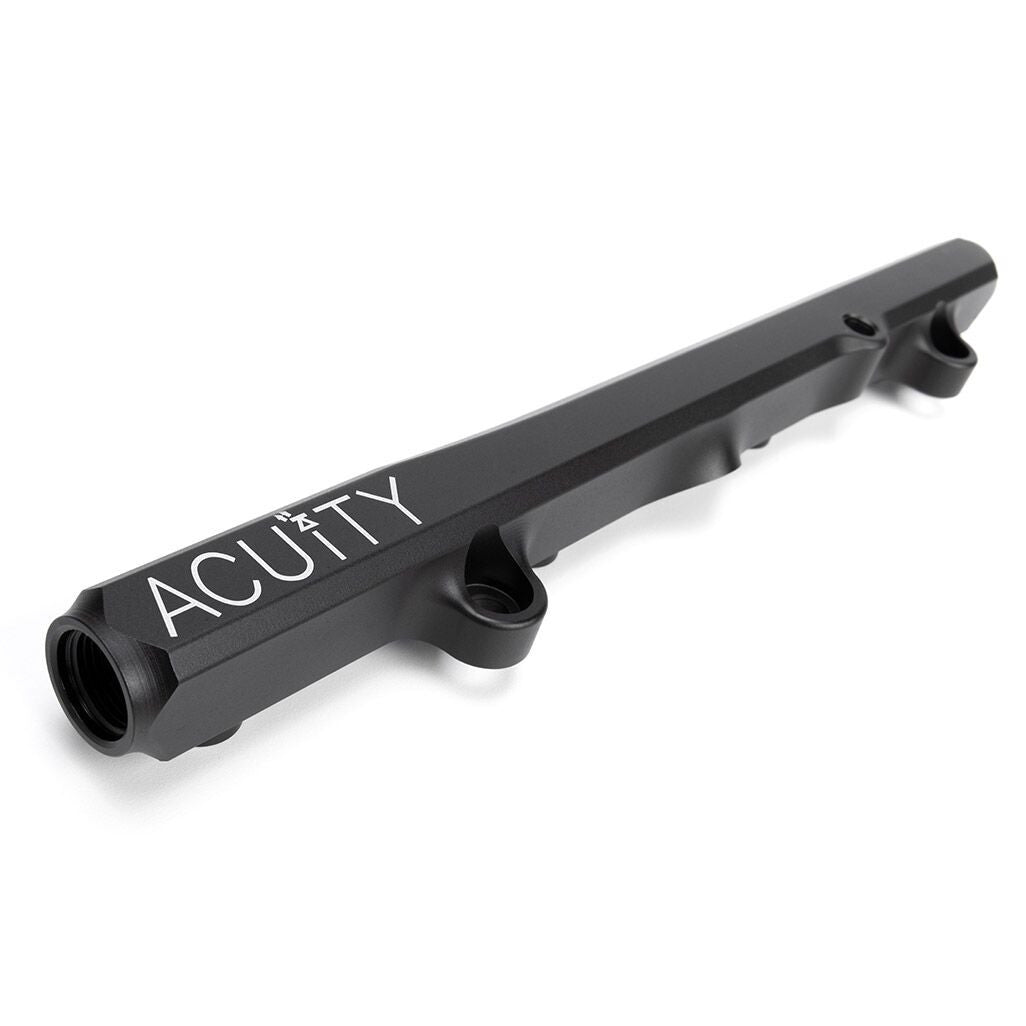

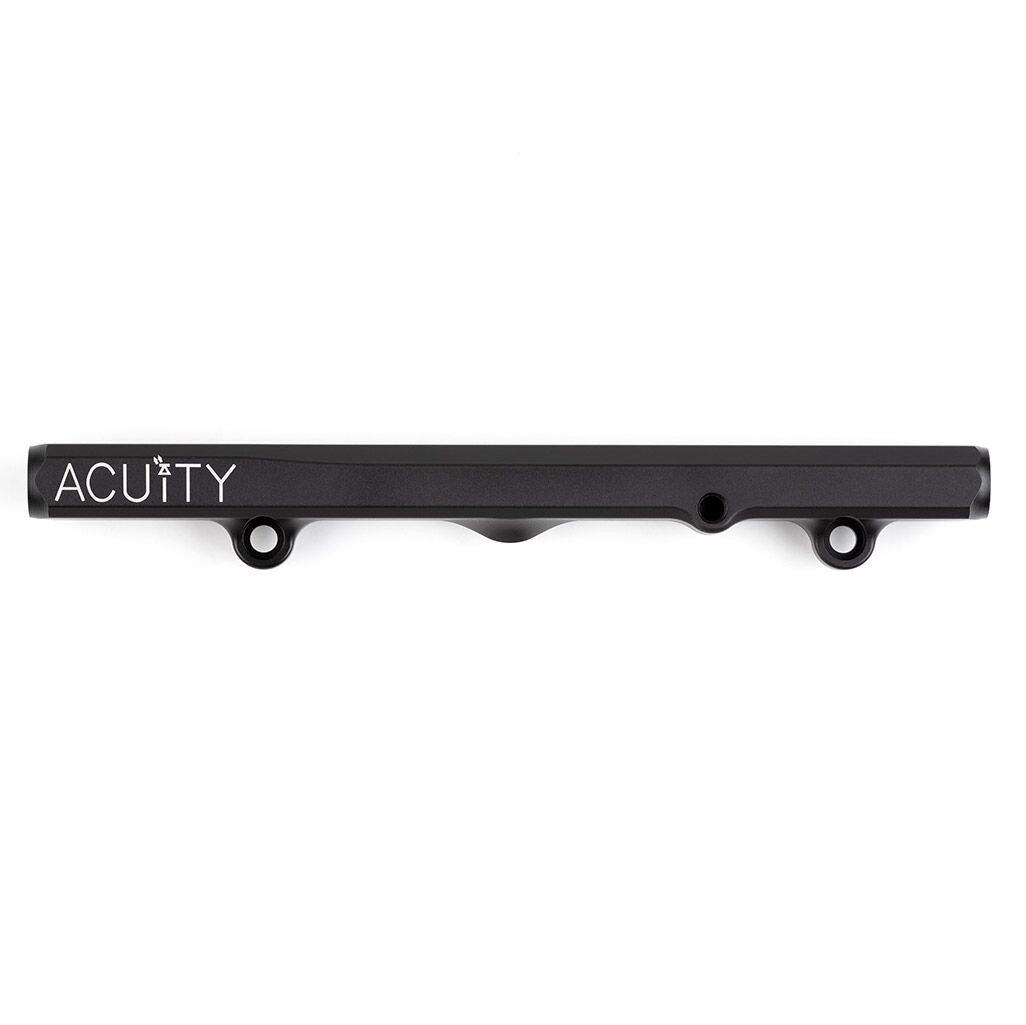

Whether upgrading for additional fuel delivery needs to run upgraded fuel lines, or to simply clean up your engine bay, ACUiTY's K-Series High-Flow Fuel Rail is the most versatile and refined solution available.

With it's 1/8 NPT port on top, -8 o-ring boss (ORB) ports on both ends and another -8 ORB port located at the middle of the rail, there are a variety of ways you can set the rail up for your car (see "Fitment Info" for application-specific fitting requirements).

Each rail is constructed from 6061-T6 aluminum and has a satin-texture, anodized finish with laser-etched technical info and logos.

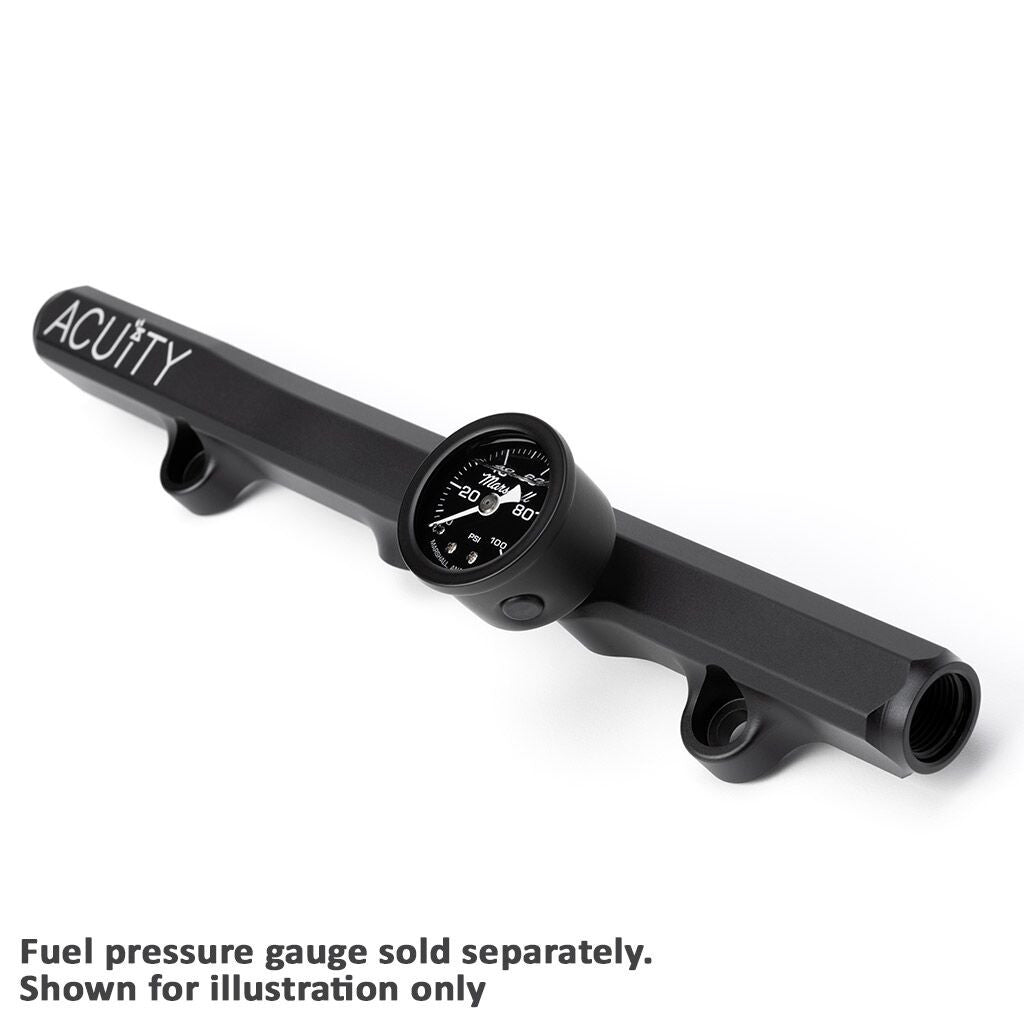

Among the rails' other features, are countersunk mounting screw holes and supplied class 10.9+ hardware to replace the OEM studs. Each rail is also supplied with a stainless steel 1/8 NPT plug in case a top-mounted fuel pressure gauge is used. The end locations for the -8 ORB ports have been specifically machined to help reduce the likelihood of wrench damage to the rail's cosmetic finish during installation.

As an added bonus rarely found on aftermarket rails, the rail allows the end-user to retain the OEM injector clips if you prefer. The rail is able to be setup for a variety of applications, depending on the fittings you choose to pair with it.

Among the available fittings are plugs, 1/8 NPT adapters for side-mounted gauges or sensors, -6AN and -8AN adapters for those running braided fuel lines, and 5/16" Quick Connect adapters for those running OEM fuel lines.

Fitting part numbers are as follows:

  • 1913-F02: -8 ORB Plug
  • 1913-F03: -6AN adapter
  • 1913-F04: -8AN adapter
  • 1913-F05: 1/8 NPT adapter
  • 1913-F06: 5/16" Quick-Disconnect adapter, short
  • 1913-F07: 5/16" Quick-Disconnect adapter, long

Features:

  • 15mm (0.59") bore supports 1000+hp
  • 1/8 NPT gauge port
  • -8 ORB center-feed port for tucked fuel lines
  • -8 ORB end ports for OEM, side-feed, or return setups
  • 6061-T6 billet aluminum construction
  • Satin black, purple, red, or teal anodized finish
  • Includes class 10.9 zinc-plated mounting hardware
