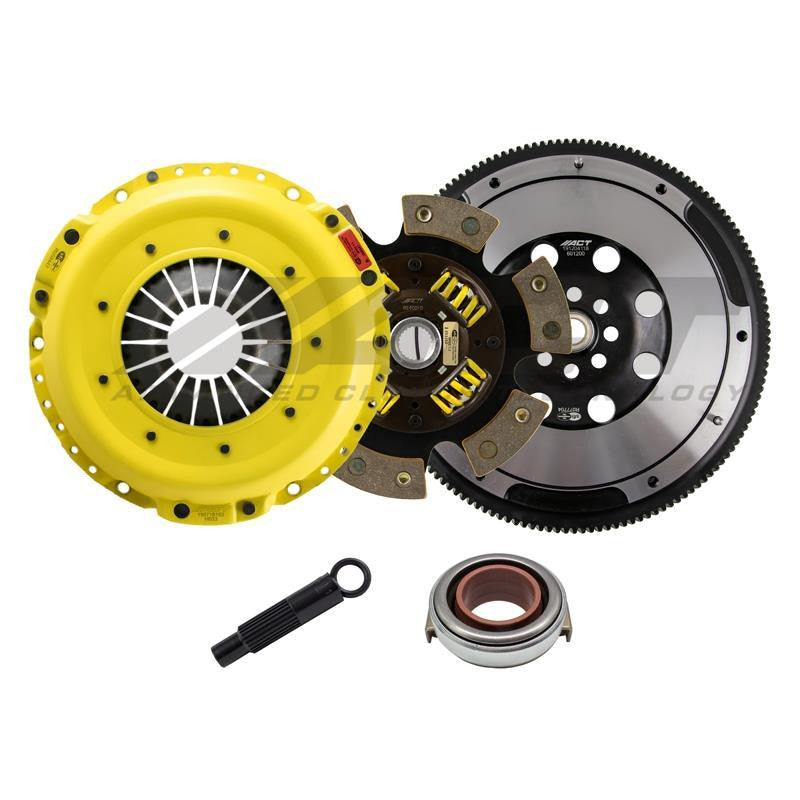

ACT HD/RACE 10th Gen Honda Civic TYPE-R 6 PAD SPRUNG COMPLETE CLUTCH KIT

Fits: 10th 11th Gen Honda Civic Type-R

ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection, and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.

Specs:

• Torque Capacity (ft/lbs.): 527
• Torque Capacity Over OE: 71%
• Feel: Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
• Life: Moderate friction life, extended by ACT's exclusive diaphragm design
• Quality: Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
• Recommended Use: Recommended for high horsepower street or race use ACT
• Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
