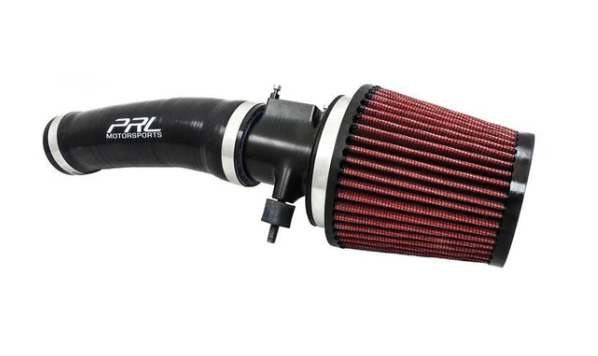

2017-2022 Honda CR-V 1.5T Short Ram Air Intake System

PRL-HCRV5-INT-SRI-B

Bore Size
$314.99
$314.99
Shipping calculated at checkout.

I have read Axion's store policies on returns, refunds, and cancellations. I also understand that when marked on the product page, special order items may not be canceled for any reason.

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

FITS: 5th Gen Honda CR-V

BEFORE ORDERING: This is a special order item that will take 1-2 months to ship.  Special order items may not be canceled for any reason.

PER STATE LAWS, WE DO NOT SHIP THIS PRODUCT TO CALIFORNIA AND NEW YORK.

Important Notes

  • NO ECU CALIBRATION REQUIRED FOR STANDARD BORE MAF HOUSING
  • BIG BORE MAF-SPECIFIC ECU CALIBRATION REQUIRED FOR BIG BORE MAF HOUSING
  • HONDATA & KTUNER BOTH OFFER BIG BORE MAF BASEMAP CALIBRATIONS
  • TWO STEP PERFORMANCE "TSP" TUNE(S) & PHEARABLE TUNE(S) COMPATIBLE BY SELECTING "RACE MAF" OPTION

Technical Notes:

Our CNC machined billet aluminum MAF Housing was designed to provide *factory-spec fuel trims (-4% of factory STFT & LTFT) for optimal drivability and performance. This SRI utilizes a 4" air filter and is available with two different MAF housing choices; a Standard Bore housing and a Big Bore housing. Both housings utilizes the factory MAF sensor, but feature two different diameters and profiles. As mentioned above, the Standard Bore housing is designed to provide factory-spec fuel trims WITHOUT any tuning whatsoever. The Big Bore housing allows a 50% larger volume of air in comparison to the Standard Bore housing, which is why a tune IS required. This larger volume of airflow reduces pumping loss and creates an unrestricted air path to feed the MAF housing with ambient temperature air.

Customers can switch between MAF housings without having to buy another intake system by purchasing our MAF Housing Conversion Kit

Performance Gains:

  • 15 horsepower and 12 ft/lb torque gains in comparison to stock with Standard Bore MAF housing WITHOUT TUNE
  • 20 horsepower and 15 ft/lb torque gains in comparison to stock with Big Bore MAF housing WITH Big Bore MAF basemap calibration on Hondata and/or KTuner
  • Larger gains to be seen at higher power levels with custom tuning

Please note that short ram intakes are extremely sensitive to heat-soak with this chassis (which is why we recommend our CAI). Performance gains will lessen as the engine and intake begins to heat-soak.

Civic_x_L.trim_stock_intake_and_stock_tune_zpskkzb36fg
Above is a graph of the long term fuel trims with the stock intake w/ air box and factory ECU mapping, or in other words a bone-stock car.

Civic_x_L.trim_PRL_intake_and_stock_tune_zpsfqmhgzzt
Here is a graph of the long term fuel trims again with, but with our cold air intake (Standard Bore MAF) and factory ECU mapping.

Civic_x_L.trim_PRL_intake_and_Hondata_6psi_tune_zpsvk4gipc4
This is another long term fuel trim graph, but with our cold air intake (Standard Bore MAF) and +6psi Hondata off-the-shelf map.

Notice how consistent and similar all of the LTFT graphs are. Each graph is within -4 LTFT.

Civic_x_S.trim_stock_intake_and_stock_tune_zpsswmv0ane
Above is a graph of the short term fuel trims with stock intake w/ air box and factory ECU mapping (stock car).

Civic_x_S.trim_PRL_intake_and_stock_tune_zps1mnt3fck
Here is a short term fuel trim graph with our cold air intake (Standard Bore MAF) and factory ECU mapping.

Civic_x_S.trim_PRL_intake_and_Hondata_6psi_tune_zpscqlf4ni0
This is another graph of the short term fuel trims with our cold air intake (Standard Bore MAF) and +6psi Hondata off-the-shelf map.

All of the STFT graphs display identical curves and consistency.
