2016-2021 Honda Civic 1.5T WiFi Ethanol Content Analyzer / Flex Fuel Kit

$549.99 USD

Shipping calculated at checkout


Fits all:

  • 10th Gen Honda Civic 1.5T
  • 10th Gen Honda Civic Si
  • Variant models including CVT, 6MT, RHD, International Models, Etc.


  • WiFi module to wirelessly analyze ethanol content, via a smart device.
  • Optional 05.V - 4.5V configurable output for use with tuning device/datalogger
  • Compatible with both Hondata and KTuner
  • Catch can mounting brackets available from CRE custom

Why Run Ethanol? Due to rising gas prices and the push for alternative fuel sources, ethanol, derived primarily from corn, has become a common, cost-effective fuel choice. Ethanol has now found its way into most modern gas stations and the community now understands its list of benefits in comparison to gasoline, such as the fact ethanol burns cleaner, cooler and is more resistant to detonation. Because of these characteristics, ethanol is a cheap alternative to expensive race fuels like race gas and/or methanol, especially with high(er) compression factory turbocharged vehicles. E85 = 85% Ethanol and 15% Gasoline whereas E30 = 30% Ethanol and 70% Gasoline and so-on.

What is Flex Fuel? In a nutshell, “flex-fuel” allows an internal combustion engine to flexibly utilize one or more different fuels (usually gasoline blended with either ethanol or methanol fuel), and both fuels are stored in the same common fuel tank. Flex-Fuel systems utilize an ethanol content analyzer to determine the amount of ethanol in a fuel system and a converter to send this reading to the vehicle’s ECU to instantaneously adjust for varying fuel mixtures.

Our Plug ‘n Play Flex-Fuel Kit utilizes factory plugs/outputs under the hood for power and communication to the ECU, meaning no need for additional wiring, cutting, splicing or running wires through the firewall into the cabin!

This kit supplies everything needed for a quick and easy installation. Please note that our kit does NOT utilize an ethanol content gauge, as we feel that this is unnecessary.

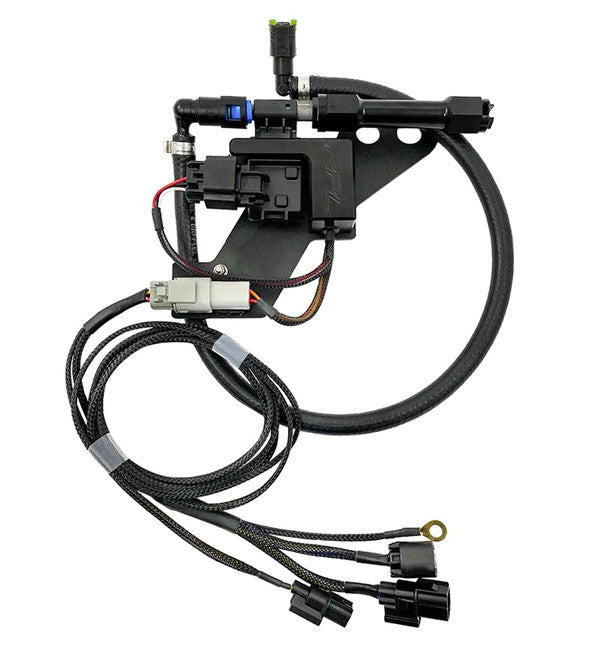

Kit Includes:

  • Billet Aluminum Flex-Fuel Converter Case w/ Sealed & Potted Board (WiFi)
  • Genuine GM Continental Ethanol Content Sensor Plug 'N Play
  • Braided Wiring Harness
  • Stainless Mounting Bracket 3/8" to 1/4"
  • EFI Billet Adapter Union Gates Barricade
  • High-Pressure Fuel Injection Hose 1/4"
  • EFI Quick Connect Fitting (OEM Line Side) 3/8"
  • EFI Quick Connect Fitting (PRL Kit Side)
  • Stainless Hardware

Replacement Fuel Hoses: PTFE Flex Fuel Line Assembly Billet EFI Flex Fuel Union Fitting
