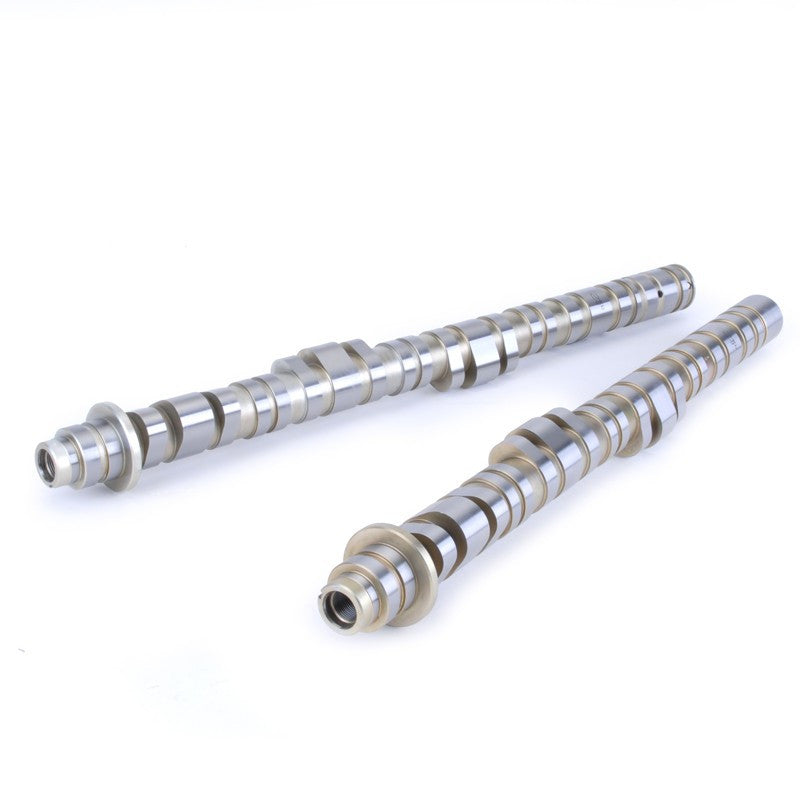

Skunk2 K Series Ultra 4 Camshaft

• 2002 - 2006 Acura RSX Type-S
• 1st Gen Acura TSX (base)
• 8th Gen Honda Civic Si

BEFORE ORDERING:

The following parts are required:

• Skunk2 Pro Series Valve Springs OR Pro XP Valve springs recommended for Turbo applications
• Titanium Retainers

The following parts are recommended: High-compression, upgraded fuel injectors

The ULTRA series camshaft is manufactured with proprietary high-quality forged tool, steel cores. They are then CNC-ground with patent pending unique lobe shapes, giving way to the Skunk2's best camshaft. Power is moved up the RPM range and power is focused on mid-range to top end.

Performance: Performance can reach upto 80HP+ on the stage 4 ultra, while producing great torque and engine response. Meant for a very aggressively modified drag type car's with either 2.4L big bore+, high compression, high-stroke road racing or all the way to aggressive turbo builds in mind.

Design: Skunk2 designs and tests all of their camshafts in-house using computer modeling and simulation equipment, skunk2 camshafts are meant to deliver maximum power across the entire powerband. Each camshaft is made from forged tool steel cores this increases torsional strength and improves durability characteristics while also reducing friction. All Skunk2 camshafts are ground to exact tolerances and specifications using state-of-the-art CNC cam grinding machines equipped with cubic-boron grinding wheels and feature hardened, wear-resistant lobes and surfaces.

Fast Ramp & Amax Technology: Skunk2’s Ultra Series Camshafts also feature Fast Ramp and AMAX profile technology, which increases overall performance and results in unmatched response from idle to redline. AMAX technology simply maximizes the area under the lift curve but without compromising reliability or valvetrain stability. Skunk2’s profiles feature more duration than competitors’ at lifts above 1mm, resulting in greater efficiency and more power. And thanks to Fast Ramp, the same technology used in Formula One racing, seat timing is reduced, which results in additional cylinder pressure and more torque but without compromising valvetrain longevity.

Specs:

• Intake Centerline: variable
• Exhaust Centerline: 112° BTDC
• Duration (Intake/Exhaust): 280°/283° @ 1mm
• Lift (Intake/Exhaust): .575" @ 0.000" lash/ .595" @ 0.000" lash
• Valve Clearance (Intake / Exhaust): .008” / .010” RPM Range: (varies)
