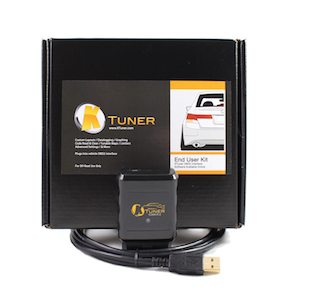

KTunerFlash V2 2009-2013 Honda Fit

FITS:

• 2nd Gen Honda Fit GE
• 3rd Gen Honda Fit GK5 1.5

PRIOR TO ORDERING:  Axion Industries is not liable for any issues with installation.  All tunes require a professional, especially in order to troubleshoot any issues.  Should you need assistance, please contact KTuner directly.

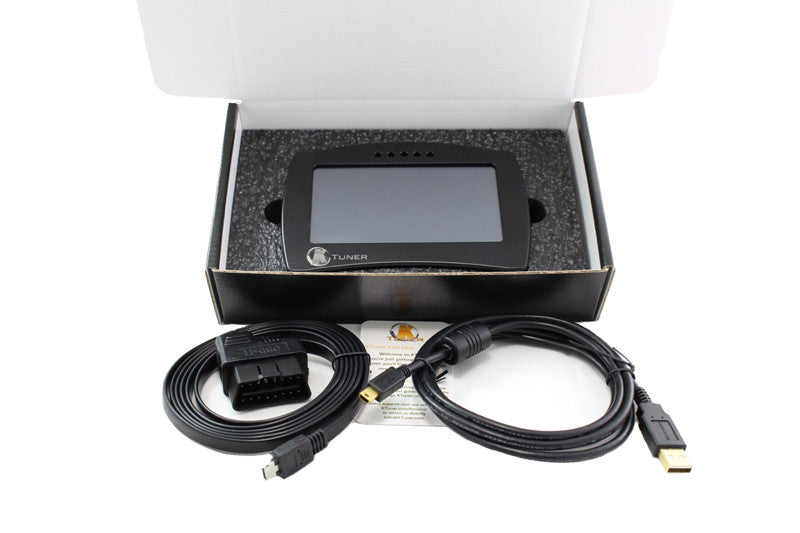

The KTunerFlash V2 features a 5″ touchscreen display that can show essential sensor data in real-time as a digital dash display. Though it’s meant as a handheld, a Dual-T bracket can be added to allow mounting on a variety of inexpensive Dual-T mounts.

Through a simple to use touch interface you can choose between different layouts, multiple data items, and even color options on layouts that support color changes.

Via full integration with our KTuner Tuning Software, you are able to load the factory tune and multiple custom tunes to the KTunerFlash V2 allowing you to switch tunes without the need for a laptop. Easily flash back to factory with the touch of the screen. If you’re making quick changes on the dyno, you can also flash through the KTunerFlash V2 without having to upload the tune first.

Five (5) Programmable LEDs can be set to show any combination of colors (RGB) and even allow for fading between a start and end color, based on your settings.

Customizable intensity settings for each breakpoint allow you to fade in or out at your desired breakpoints. Warnings allow an LED to flash rapidly to easily grab your attention. This can be used for shift lights, an overheat warning, overboost warning, and other options.

KTunerFlash V2 features On Board Logging With Programmable On/Off Parameters for recording data logs without a laptop! We allow up to 1000 data logs to be recorded with no limit on length, so you’ll never miss a beat. Quickly enable or disable on board logging from the menu and once your parameters are met, it will record all essential data for later review.

KTunerFlash V2 has built-in bluetooth integration. With a supporting app, like TunerView for Android ($5), you are also able to add additional gauge integration for real-time data display and more. The TunerView app allows you to use your Android device as a video camera and overlay real-time data from the KTunerFlash V2.

Part numbers for usable ECUs include:

North America MT:

• 37820-5R7-A01 through A04
• 37820-5R7-A11 through A14
• 37820-5R7-C01 through C04
• 37820-5R7-C11 through C14
• 37820-5R7-D11 through D14
• 37820-5R7-U01 through U04

CVT:

• 37820-5R7-A51 through A57
• 37820-5R7-C51 through C57
• 37820-5R7-C61 through C67
• 37820-5R7-C71 through C77

International MT:

• 37820-5R3-B01 through B02
• 37820-5R3-H01 through H02
• CVT 37820-5R7-K51 through K55
• 37820-5R7-P51 through P55
• 37820-5R7-P61 through P65
• 37820-5R7-P71 through P75
• 37820-5R7-P81 through P85
• 37820-5R7-P91 through P95
• 37820-5R7-U71 through U74
• 37820-5R7-X51 through X55
