FITS: 9th Gen Honda Accord V6
PRIOR TO ORDERING: Axion Industries is not liable for any issues with installation. All tunes require a professional, especially in order to troubleshoot any issues. Should you need assistance, please contact KTuner directly.
NOTE: Free tunes can be downloaded from the KTuner site.
KTuner is for off-road research and development testing only. Every vehicle should be flashed back to factory before being driven on a public road.
Dyno Testing Results Can Be Found At The Bottom Of The Page
What are my options?

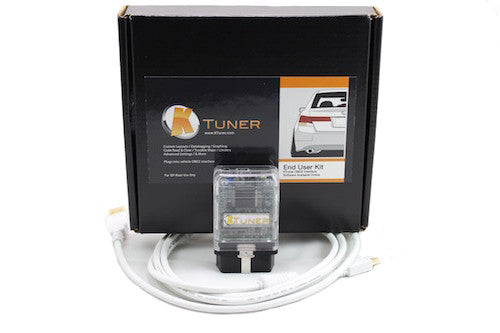

• KTunerFlash V1.2 End User System – Hardware/software. Datalog And Make Your Own Changes! – $449

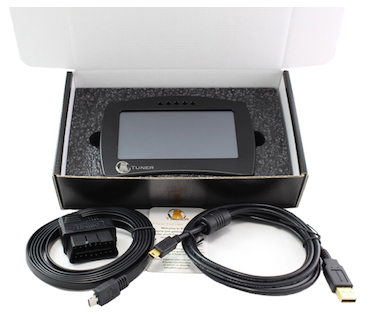

• KTunerFlash V2 End User System – All-In-One Display/Flash Hardware+Software. Datalog and make your own changes – $649
|
Part numbers for usable ECUs include:
| North America Accord V6 |
|
|
| 2013 |
MT |
37820-5G2-A01 through A05 |
| 2014-15 |
MT |
37820-5G2-A11 through A13 |
| 2016-17 |
MT |
37820-5G2-A21 through A23 |
| 2013-15 |
AT |
37820-5G0-A51 through A57 |
|
|
37820-5G0-A61 through A67 |
|
|
37820-5G0-A71 through A76 |
|
|
37820-5G1-L51 through L55 |
|
|
37820-5G1-L61 through L64 |
|
|
37820-5G1-L71 through L74 |
|
|
37820-5G0-A11 through A14 |
|
|
37820-5G0-A21 through A24 |
|
|
37820-5G0-A31 through A34 |
|
|
37820-5G1-L11 through L14 |
|
|
37820-5G1-L21 through L24 |
|
|
37820-5G1-L31 through L34 |
| 2016-17 |
AT |
37820-5G0-A01 through A05 |
|
|
37820-5G0-A41 through A45 |
|
|
37820-5G0-A81 through A85 |
|
|
37820-5G0-A91 through A95 |
|
|
37820-5G1-L01 through L03 |
|
|
37820-5G1-L41 through L43 |
|
|
37820-5G1-L81 through L83 |
|
|
37820-5G1-L91 through L93 |
|
|
|
| Crosstour |
AT |
37820-R53-A51 through A55 |
|
|
37820-R53-A71 through A75 |
|
|
|
| International |
|
|
|
|
37820-5G0-K51 through K55 |
|
|
37820-5G0-K61 through K63 |
|
|
37820-5G0-M51 through M54 |
|
|
37820-5G0-R51 through R53 |
|
|
37820-5G0-X51 through X53 |
|
|
37820-5G0-X61 through X63 |
|
|
37820-5G0-X71 through X72 |
|
|
37820-5G0-X81 through X82 |
|
|
37820-5G0-Y11 through Y13 |
|
|
37820-5G0-Y21 through Y23 |
|
|
37820-5G0-Y31 through Y33 |
|
|
37820-5G0-Y91 through Y92 |
|
|
37820-5G3-W51 through W54 |
|
|
37820-5G6-U51 through U53 |
|
KTuner feature matrix for 13-16 Accord V6 (BETA means the feature is currently in testing phases):
| Feature |
Final |
BETA |
|
End User |
Dealer Tuning |
Reflash |
| Real-Time Logging |
X |
|
|
X |
X |
|
| Real-Time Tuning Mode |
|
X |
|
|
X |
|
| Injector Sizing (MT Only) |
X |
|
|
X |
X |
X |
| Ignition/Fuel Tuning |
X |
|
|
X |
X |
X |
| Knock Tuning |
X |
|
|
X |
X |
X |
| Throttle Control Maps |
X |
|
|
X |
X |
X |
| Rev Limiter Settings |
X |
|
|
X |
X |
X |
| 2-Step Settings |
X |
|
|
X |
X |
X |
| Custom Map Sensor Support (MT Only) |
X |
|
|
X |
X |
|
| Speed Density Fueling (MT Only) |
X |
|
|
X |
X |
|
| Expanded Tables For Boost (MT Only) |
X |
|
|
X |
X |
|
| VTEC Window Control |
X |
|
|
X |
X |
X |
| Closed Loop Control |
X |
|
|
X |
X |
X |
| Disable Sensors |
X |
|
|
X |
X |
X |
| VCM Disable (V6 AT) |
X |
|
|
X |
X |
X |
| Fuel Cut Parameters |
X |
|
|
X |
X |
X |
| Fuel Correction Parameters |
X |
|
|
X |
X |
X |
| Ignition Correction Parameters |
X |
|
|
X |
X |
X |
| Idle Control Parameters |
X |
|
|
X |
X |
X |
Includes reflash maps covering up to Intake, RV6 PCDs, and Exhaust.
Tuned reflashes recommend 91+ octane.
Speed limiter completely removed. Please adhere to your tire speed limitations and note this feature is for off-road use only.
Dyno Testing:
Tuned at 1100ft on 91 octane.
Bottom red dashed line is factory with factory tune. Best baseline run.
Middle green dashed line introduces K&N intake with factory tune.
Top blue line is intake with KTuner tune. Intake + Tune.
Click for a larger view.

The graph below shows factory baseline to final tune with intake.
