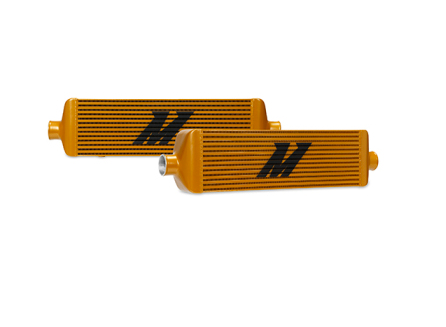

Mishimoto Universal Race Edition Intercooler J-Line-1
Mishimoto Universal Race Edition Intercooler J-Line-2
Mishimoto Universal Race Edition Intercooler J-Line-3

Mishimoto Universal Race Edition Intercooler J-Line

$365.95 USD $403.00 USD Save $37.05 USD

Shipping calculated at checkout

SKU: misMMINT-UJB

FITS: 2022+ Subaru BRZ

Key Features
  • Fits the 2001-2007 Subaru WRX/STI
  • Intercooler design optimized for maximum flow, and smooth cast end tanks allow the best possible airflow in and out of the intercooler
  • Optimal core design for maximum cooling efficiency with minimal pressure drop
  • Flow rated to approximately 600 whp/30 psi of turbo boost (See Tech Specs below)
  • Includes all necessary hardware, brackets, and accessories
  • Also fits right-hand drive models
  • Available in Sleek Silver or Stealth Black
  • Works with stock bypass valve or aftermarket blow-off valve
  • Optional Subaru WRX/STI Performance Air Intake works perfectly with intercooler kit and provides a rich and aggressive intake tone
  • Mishimoto Lifetime Warranty
A small cooler packing a big punch, this universal front-mount intercooler has been engineered to handle 500HP, even with its compact size. Tested on the highest HP Hyundai Genesis Coupe in the world, the Mishimoto J-Line intercooler is perfect for cars with limited front-end space. In most instances, the J-Line will allow you to run more power while preventing you from having to remove your crash bar. Like all Mishimoto intercoolers, the J-Line is constructed with 6061 aluminum and is TIG welded to perfection.

Worried that paint reduces performance? Check out our Painted Intercooler Engineering Report to learn how we debunked that myth!

Tech Specs
Maximum Recommended Boost Pressure (PSI) 40
Maximum Recommended Horsepower 500
Overall Length (in) 29.5
Overall Height (in) 7.5
Overall Width (in) 3.75
Core Type Bar-and-Plate
Core Thickness (in) 3.5
Core Length (in) 22
Core Height (in) 7.2
Inlet (in) 2.5
Outlet (in) 2.5
