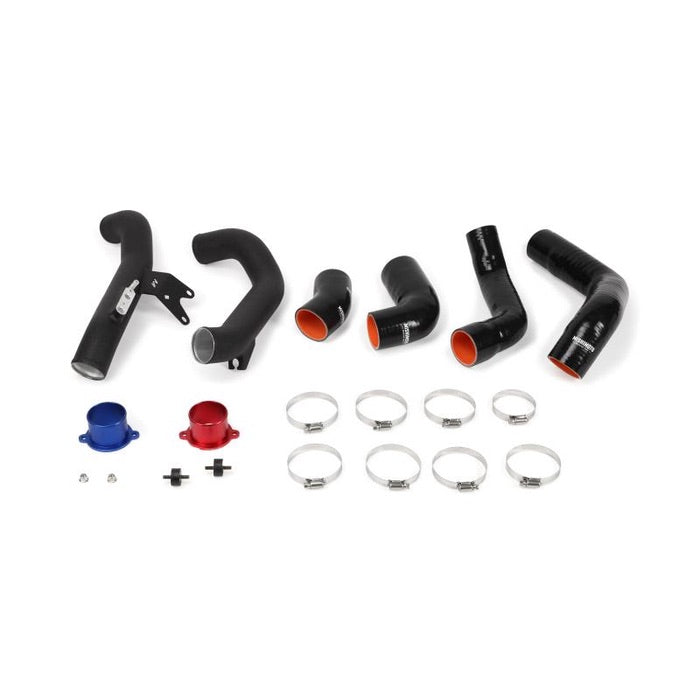

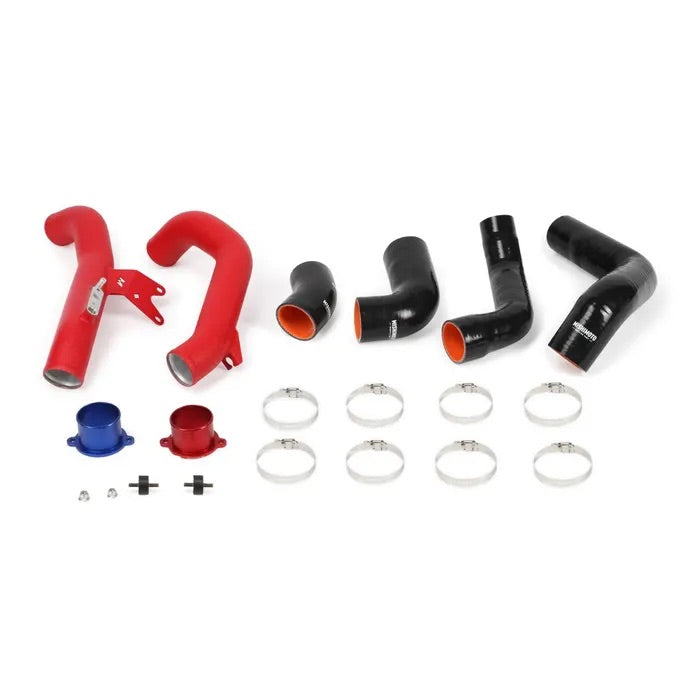

Intercooler Pipe Kit

$450.95 USD $561.14 USD Save $110.19 USD

Shipping calculated at checkout



  • 10th Gen Honda Civic 1.5T
  • 10th Gen Honda Civic Si 1.5T
  • Direct fit for the 2016-2021 Honda Civic 1.5T and 2017-2020 Si with Mishimoto intercooler
  • 4 whp and 8 wtq gains when combined with the Mishimoto Intercooler
  • 30-percent increase in size over stock components
  • Increased flow capacity ideal for tuned applications
  • Mandrel-bent aluminum piping
  • Available in wrinkle black or Rallye Red
  • Mishimoto Lifetime Warranty

Help the air flow through the intercooling system of your L15B7 with the Mishimoto Performance Intercooler Pipe Kit for your 2016-2021 Honda Civic 1.5T or 2017-2020 Civic Si! The stock equipment on your Honda Civic is riddled with bends and is constructed from degradation-prone materials at a restrictive diameter. All of these are characteristics that will limit the potential of your turbo-Civic. We here at Mishimoto want to remove the restriction on the future potential of the L15B7.

We started with the size of the pipes. We added 13 mm overall to both sides of the piping system, bumping the diameters from 42 mm to 55 mm, equating in a 30% increase in size. We also took the liberty of reducing the angles of the bends in the piping, giving the charged air a more direct flow through the intercooling system.

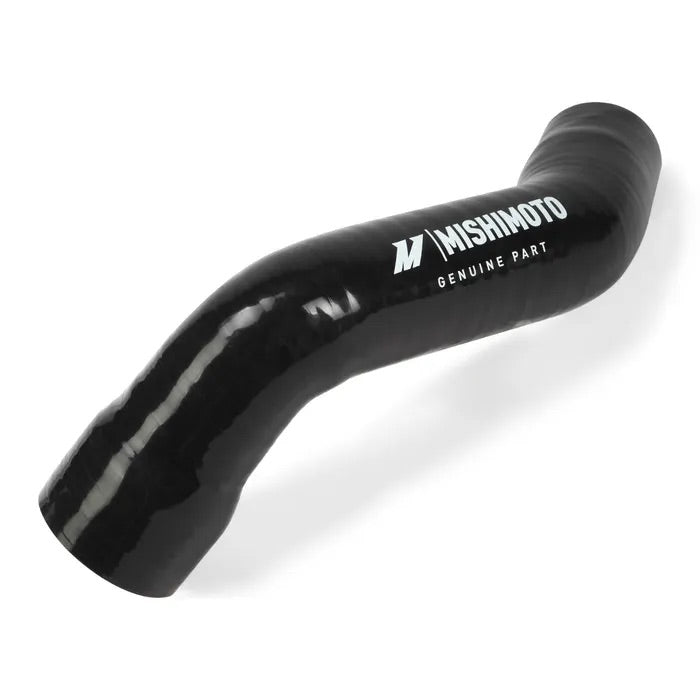

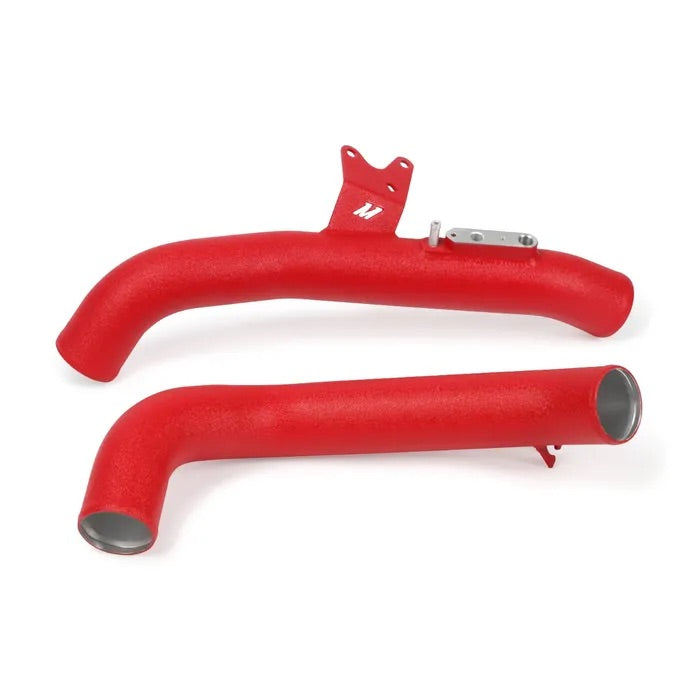

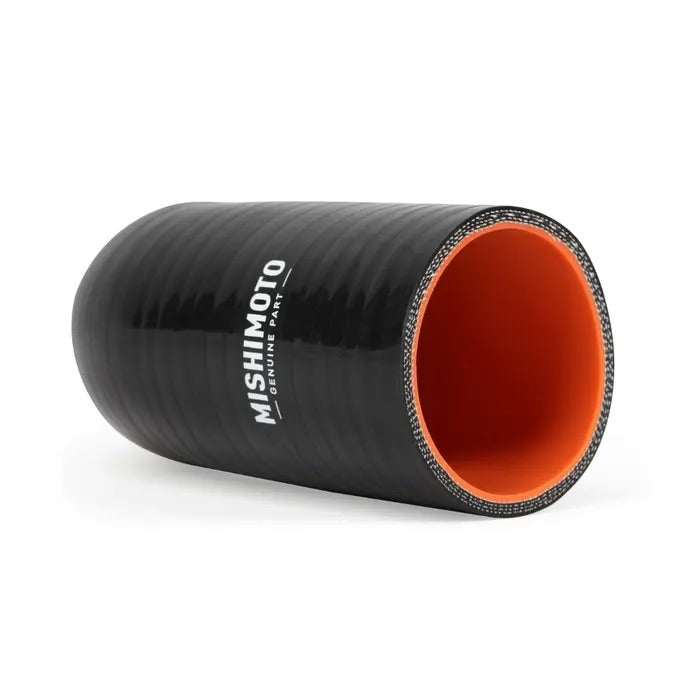

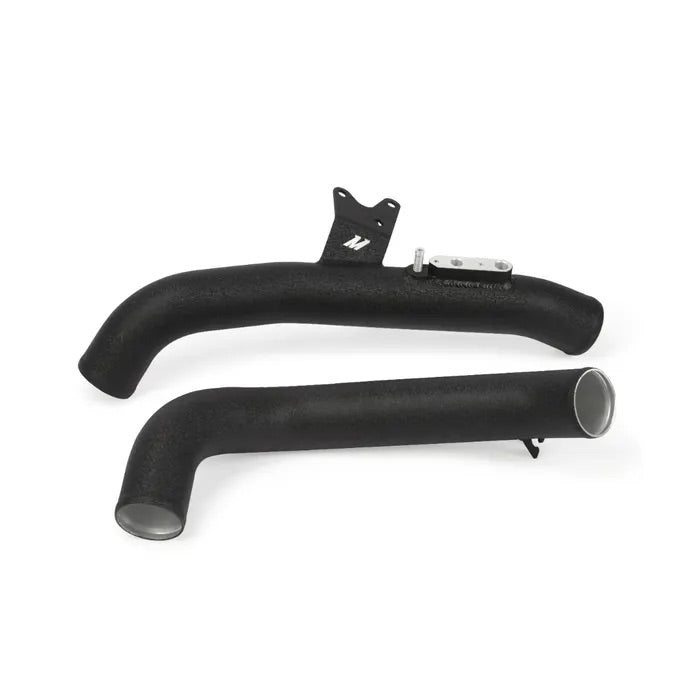

The size and direction of the piping wasn't the only change either. Gone is the degradation-prone plastic that makes up the cold-side piping, replaced with a section of mandrel-bent aluminum piping, giving your intercooler pipe kit an improvement in durability and style. We also took the liberty to replace the rubber in the stock kit with couplers constructed from 5 layers of durable silicone embedded with heat-resistant fibers, keeping engine heat out of your intercooler's charged air.

The result of adding the Mishimoto Intercooler Pipe kit to your 2016-2021 Honda Civic 1.5T or 2017-2020 Civic Si is the addition of flow through your intercooling system, along with a few extra horses under the hood and the potential for more with a tune.

The 2016-2021 Honda Civic 1.5T Mishimoto Performance Intercooler Pipe Kit is available in wrinkle black and Ralley Red, and includes the Mishimoto Lifetime Warranty.

APPLICATIONS 2016-2021 Honda Civic 1.5T
2017-2020 Honda Civic Si
NOTE The Mishimoto Performance Intercooler Pipe kit is only compatible with the Mishimoto Performance Intercooler and will not mount to the stock intercooler.
INSTALLATION NOTES 27 in-lbs (3NM) recommended for all T-bolt and constant-tension T-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4NM). Do not exceed the maximum torque rating of 35 in-lbs (4NM).


INSTALLATION GUIDE: Click here to access.
